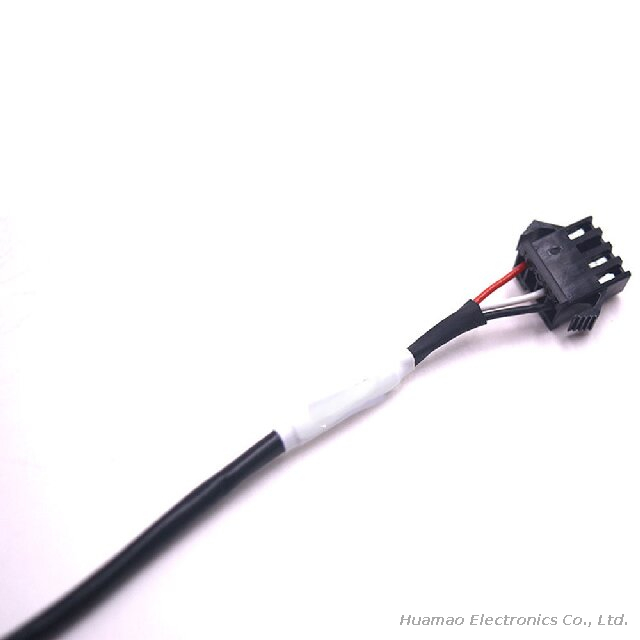

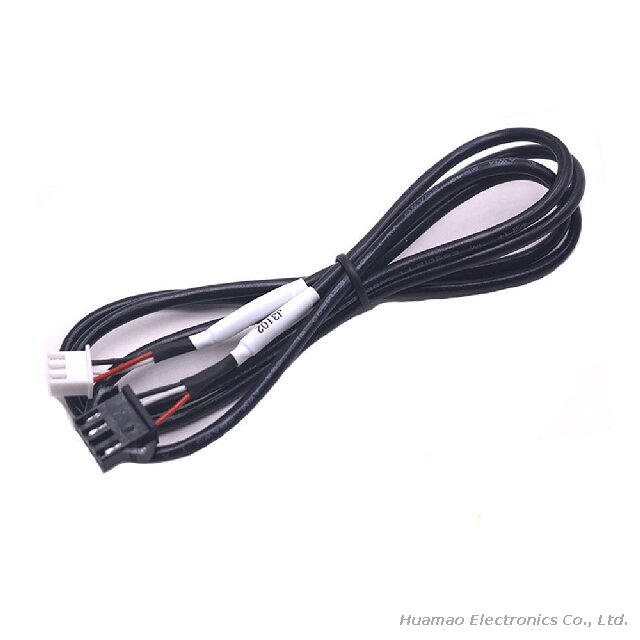

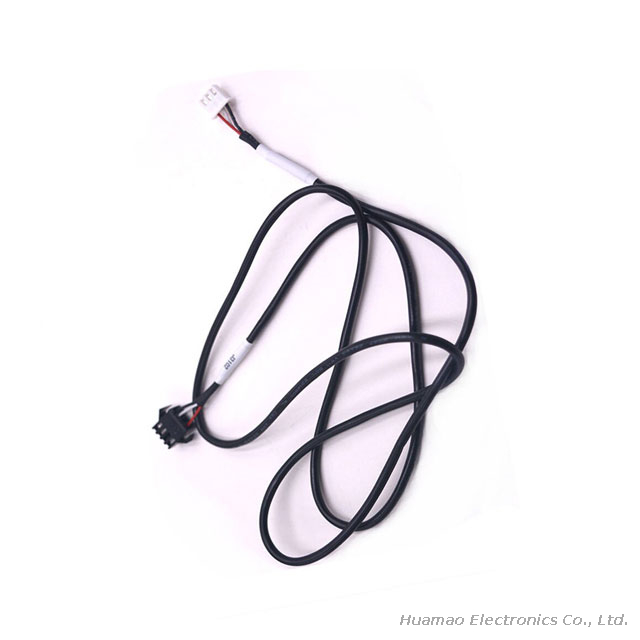

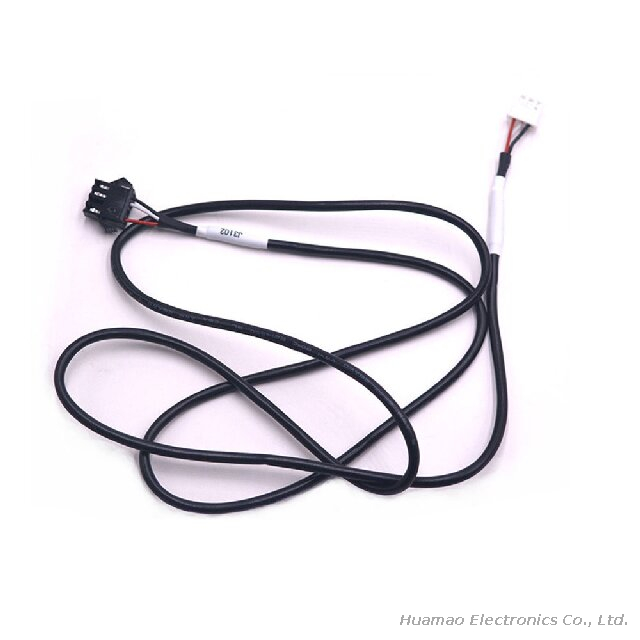

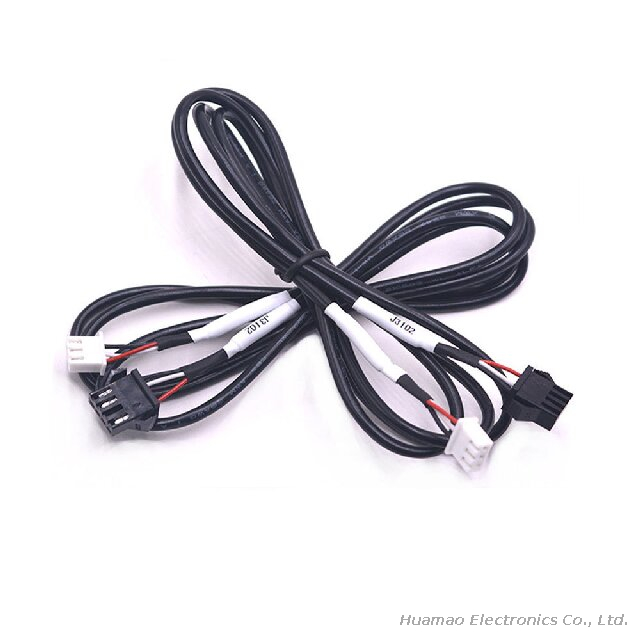

3-Core Shielded Xh2.5-1*3p Terminal Wire Sm2.54-1*4p Connecting Wire



• Current rating: 3 A AC/DC (AWG #22)
• Voltage rating: 250 V AC/DC
• Temperature range: -25°C to +85°C
( including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10 mΩ max.
After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage:
There shall be no breakdown or flashover while
applying 1,000 VAC for one minute.
• Applicable wire range: AWG #30 to #22
• Applicable PC board thickness: 1.6 mm

RoHS2 compliance
Lead time: Sample 3-7 days, mass production 15 days
Payment term: TT,PayPal,Credit card
