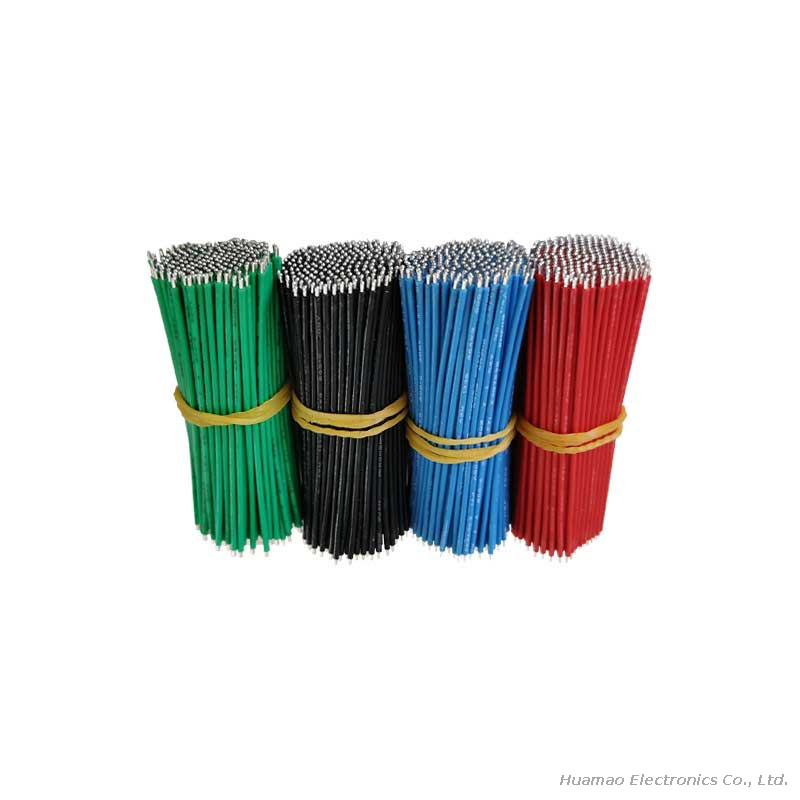

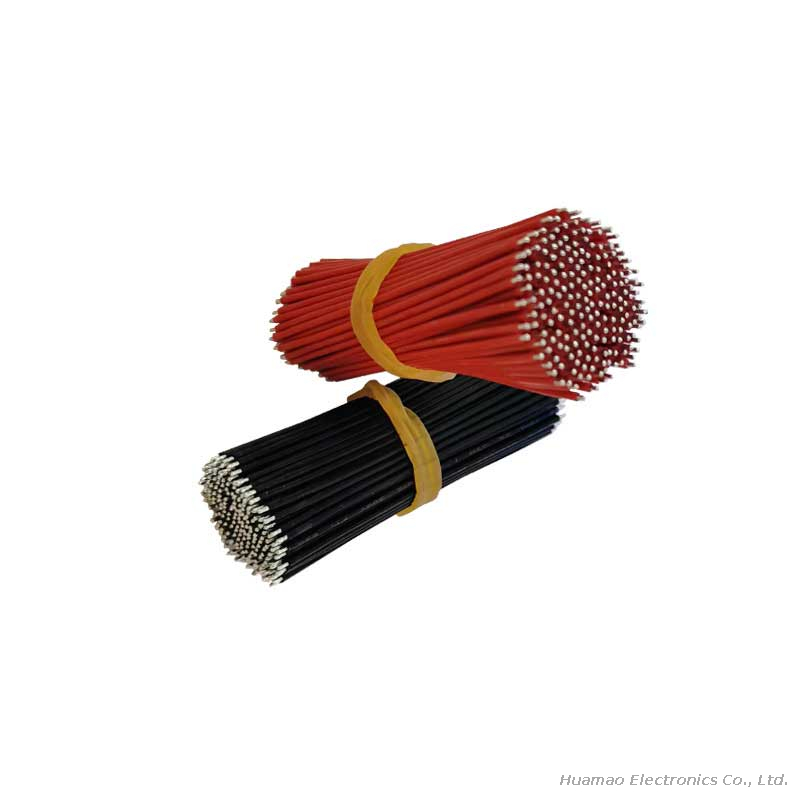

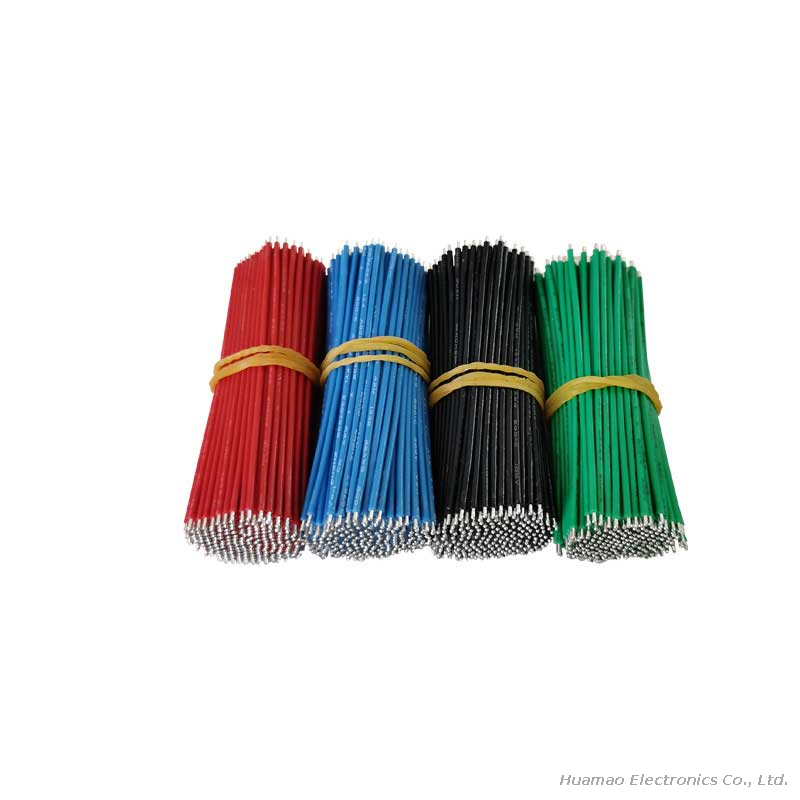

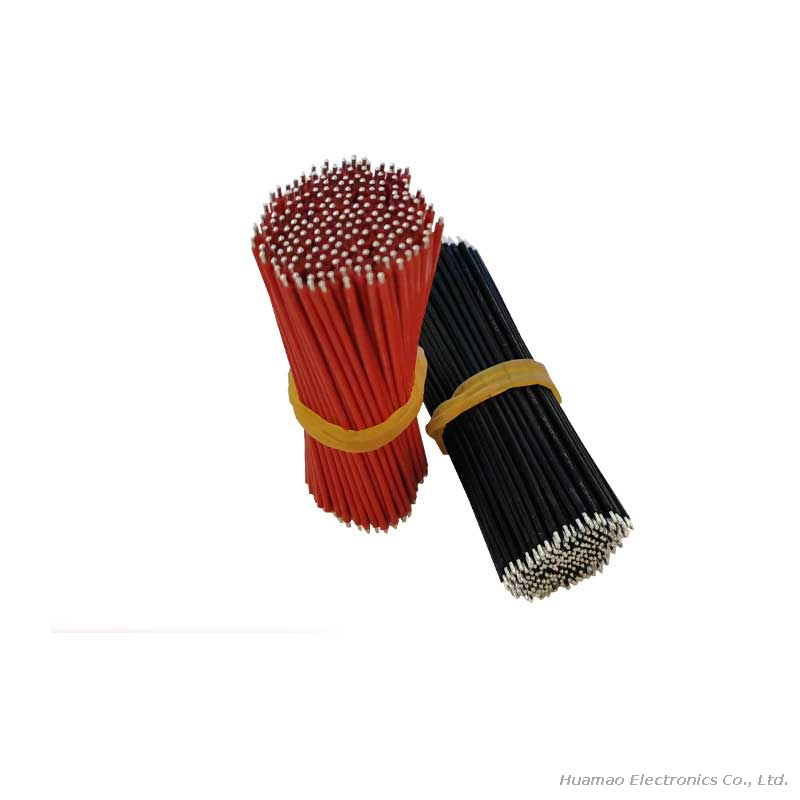

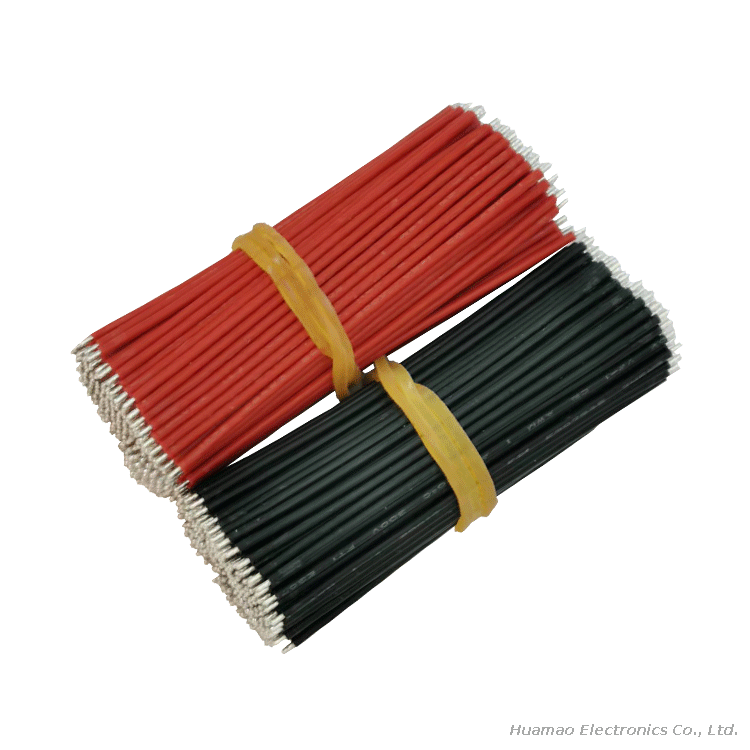

Jumper Wire
Huamao
HM10712A
Availability: | |
---|---|
Quantity: | |
Application:
UL 1332 Teflon Wire uses electronic industry. It can be used for temperature compensation wire, low temperature wire, high temperature heating wire, anti-aging wire and flame retardant wire; household appliances industry, can be used for air conditioners, microwave ovens, electronic disinfection cabinet, rice cookers, electronic thermos, , Electric oven, electric wok, lighting, lighting and other internal wiring.
Standard:
UL758,UL1581
Advantage:
Has excellent corrosion resistance, almost insoluble in any organic solvent, can be anti-oil, strong acid, anti-alkali, strong oxidants, etc .;
Has excellent electrical insulation properties, high voltage, high frequency loss, no moisture absorption, insulation resistance Large; with excellent fire resistance, aging resistance, long service life.
Customer Service:
Being one of the leading Teflon Wire manufacturers, we always put quality in the first place. In order to guarantee the performance of UL 1332 , Huamao produce the cable in strict accordance with international standards. Our UL 1332 and ul1330 aer very popular in the world. We promise to provide the qualified products for our customers.
Conductor | Insulation | Max.Conductor Resistance DC 20ºC Ω/km | Packing | |||
---|---|---|---|---|---|---|
AWG | Conductor Construction No./dia.(mm) | Diameter(mm) | Insulation Thickness(mm) | Out Diameter(mm) | m/coil | |
36 | 7/0.05 | 0.15 | 0.085 | 0.32 | 1900 | 305 |
34 | 7/0.064 | 0.19 | 0.075 | 0.34 | 900 | 305 |
34 | 19/0.04 | 0.2 | 0.07 | 0.34 | 900 | |
32 | 7/0.08 | 0.24 | 0.065 | 0.38 | 588.85 | 305 |
32 | 19/0.05 | 0.25 | 0.1 | 0.38 | 588.85 | |
30 | 7/0.1 | 0.3 | 0.1 | 0.5 | 381 | 305 |
30 | 19/0.06 | 0.3 | 0.12 | 0.5 | 381 | |
28 | 7/0.127 | 0.38 | 0.12 | 0.62 | 239 | 305 |
26 | 7/0.16 | 0.48 | 0.16 | 0.72 | 150 | 305 |
24 | 7/0.02 | 0.6 | 0.2 | 0.92 | 94.2 | 305 |
22 | 7/0.254 | 0.76 | 0.2 | 1.16 | 59.4 | 610 |
20 | 7/0.32 | 0.96 | 0.2 | 1.36 | 36.7 | 610 |
18 | 19/0.235 | 1.18 | 0.2 | 1.58 | 23.2 | 610 |
16 | 19/0.3 | 1.5 | 0.2 | 1.9 | 14.2 | 610 |
