LCD Screen Cables: A Comprehensive Overview

In the realm of modern electronics, the LCD (Liquid Crystal Display) screen has become an indispensable component of devices ranging from televisions and computer monitors to smartphones and tablets. The seamless functioning of these devices relies heavily on various internal and external components, among which the LCD screen cable plays a crucial role. This article delves into the significance, types, construction, and troubleshooting of LCD screen cables, providing a thorough understanding of this essential component.

What is an LCD Screen Cable?

An LCD screen cable, also known as an LCD ribbon cable or flat-flex cable (FFC), is a specialized cable that connects the LCD screen to the motherboard or the display controller of a device. Its primary function is to transmit video signals, including the image data, from the device's processor to the screen, enabling the display to produce the visuals that users interact with.

Importance of LCD Screen Cables

The importance of LCD screen cables cannot be overstated. They serve as the vital link between the screen and the electronic components of the device, ensuring that the image rendered on the LCD is accurate and timely. The performance of the LCD screen, including aspects like resolution, color accuracy, and refresh rate, is directly influenced by the quality and integrity of the screen cable.

Construction and Design

1. Ribbon Cable Structure:

LCD screen cables are typically flat, ribbon-like structures composed of multiple thin conductors arranged in parallel. This design is crucial for maintaining a slim profile, which is essential for modern, compact electronic devices. The ribbon cable is often encased in a flexible insulating material that protects the conductors from physical damage and electrical interference.

2. Conductors and Insulation:

The conductors within an LCD screen cable are usually made of high-purity copper or aluminum. These materials are chosen for their excellent electrical conductivity, which ensures efficient signal transmission. The insulation material is typically made from a polymer, such as polyester or polyimide, which provides both electrical insulation and mechanical flexibility.

3. Connectors:

At both ends of the LCD screen cable are connectors that interface with the LCD screen and the motherboard. These connectors are designed to securely attach to their respective ports while minimizing signal loss. Common types of connectors used in LCD cables include ZIF (Zero Insertion Force) connectors and FPC (Flexible Printed Circuit) connectors.

Types of LCD Screen Cables

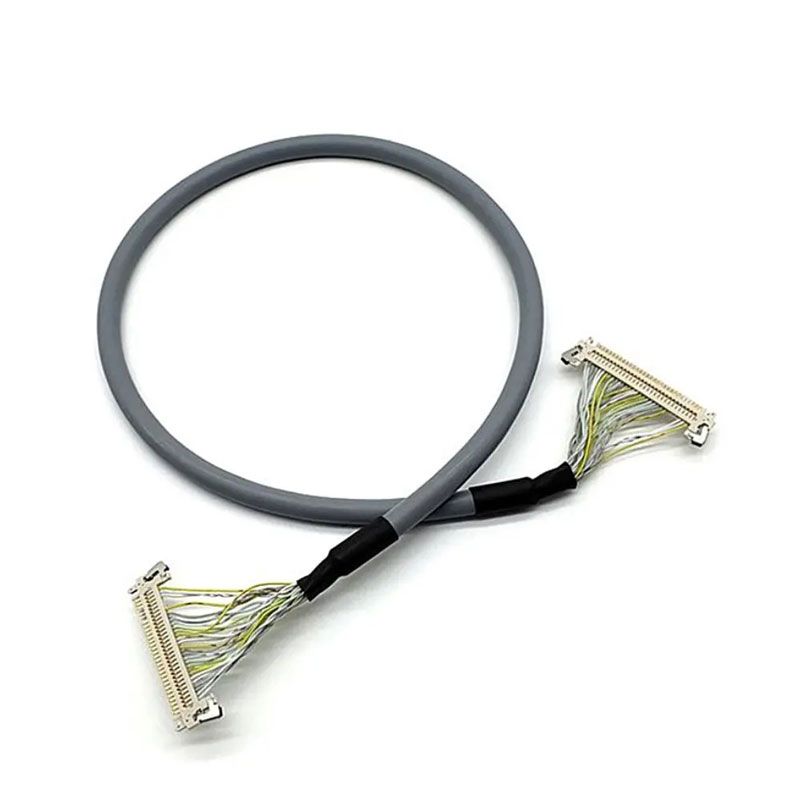

1. LVDS (Low-Voltage Differential Signaling) Cables:

LVDS cables are widely used in LCD screens due to their high-speed data transmission capabilities and low power consumption. They transmit data using differential signaling, which reduces electromagnetic interference and allows for higher data rates. LVDS cables are commonly found in laptops, monitors, and high-definition televisions.

2.EDP (Embedded DisplayPort) Cables:

EDP cables are used in more recent LCD screens, particularly those in high-resolution displays and ultrathin laptops. They support high bandwidth and are capable of delivering high-definition video signals with minimal latency. EDP cables also facilitate advanced features such as high refresh rates and wide color gamut.

3. VGA (Video Graphics Array) Cables:

Though less common in modern devices, VGA cables are still used in some older LCD screens. They transmit analog video signals and are known for their simplicity and widespread compatibility. However, VGA cables are limited by lower resolution and signal degradation compared to digital alternatives.

Applications of LCD Screen Cables

LCD screen cables are used in a variety of applications across different types of electronic devices:

1. Consumer Electronics:

In consumer electronics, LCD screen cables connect the screens of televisions, monitors, and laptops to their respective motherboards. They ensure that high-quality images are displayed and are integral to the performance of these devices.

2. Mobile Devices:

For smartphones and tablets, LCD screen cables connect the display panels to the device's main circuit board. Given the compact nature of these devices, the screen cables are designed to be highly flexible and durable.

3. Industrial Equipment:

In industrial applications, LCD screen cables are used in machinery, control panels, and other equipment where reliable display connectivity is crucial. The durability and robustness of these cables are tailored to withstand harsh operating conditions.

Troubleshooting and Maintenance

1. Common Issues:

LCD screen cables are subject to wear and tear, which can lead to various issues such as screen flickering, color distortion, or complete display failure. Common causes of these issues include physical damage to the cable, poor connections, or signal interference.

2. Inspection and Repair:

To troubleshoot problems with an LCD screen cable, start by inspecting the cable and connectors for any visible damage. Check for loose or corroded connectors and ensure that the cable is properly seated in its port. In cases of severe damage, replacing the LCD screen cable may be necessary.

3. Preventive Measures:

To extend the lifespan of LCD screen cables, handle them with care during installation and maintenance. Avoid bending or twisting the cables excessively, and ensure that they are not exposed to extreme temperatures or moisture.

Future Trends

As technology continues to advance, the design and functionality of LCD screen cables are also evolving. Future trends include the development of more flexible and high-speed cables to support emerging display technologies such as 4K and 8K resolution screens, as well as advancements in OLED (Organic Light Emitting Diode) displays.

1. Flexible Display Technologies:

With the rise of flexible and foldable displays, the design of LCD screen cables is adapting to accommodate these new forms. Innovations in cable materials and construction are aimed at ensuring that the cables remain reliable even when the display is bent or folded.

2. Higher Resolution and Refresh Rates:

As display resolutions and refresh rates continue to increase, LCD screen cables must support higher data transfer rates. This trend is driving the development of cables with enhanced bandwidth capabilities and improved signal integrity.

Conclusion

LCD screen cables are a fundamental component in the operation of modern display devices, providing the essential connection between the screen and the device's electronic systems. Understanding their construction, types, applications, and maintenance is crucial for ensuring optimal performance and longevity of electronic devices. As technology progresses, LCD screen cables will continue to evolve, supporting increasingly advanced display technologies and contributing to the ever-improving quality of visual experiences in our digital world.
