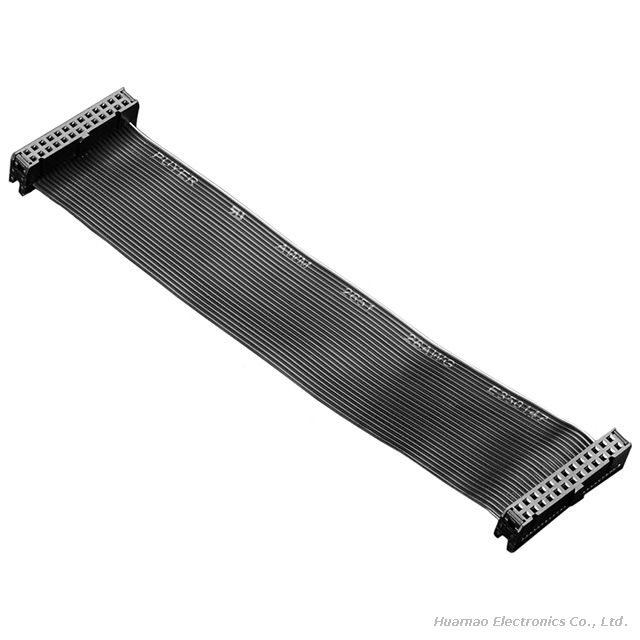

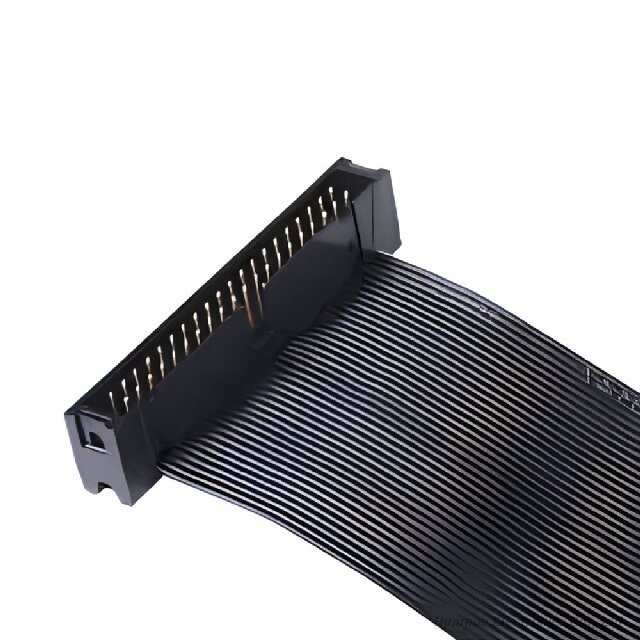

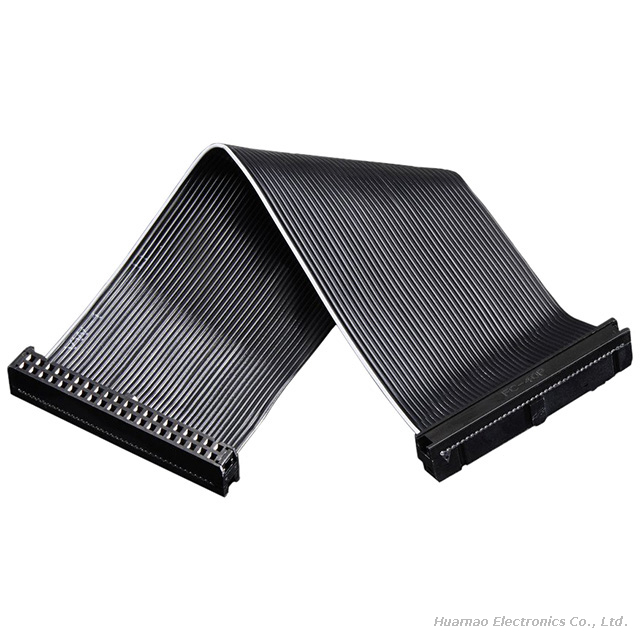

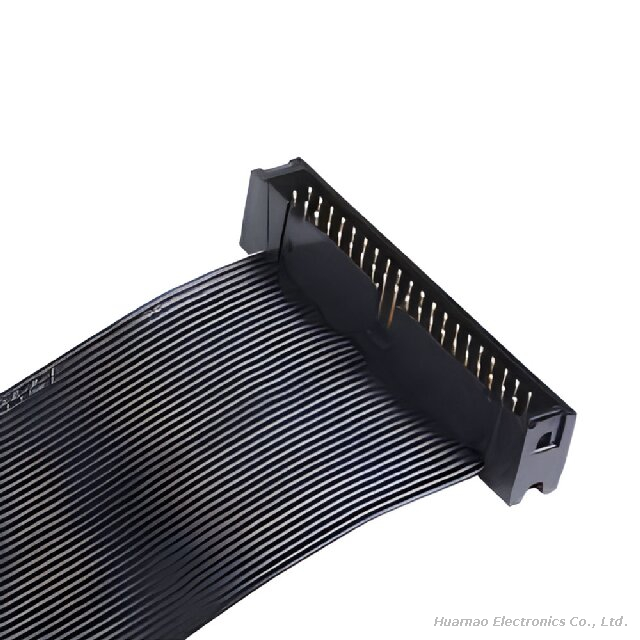

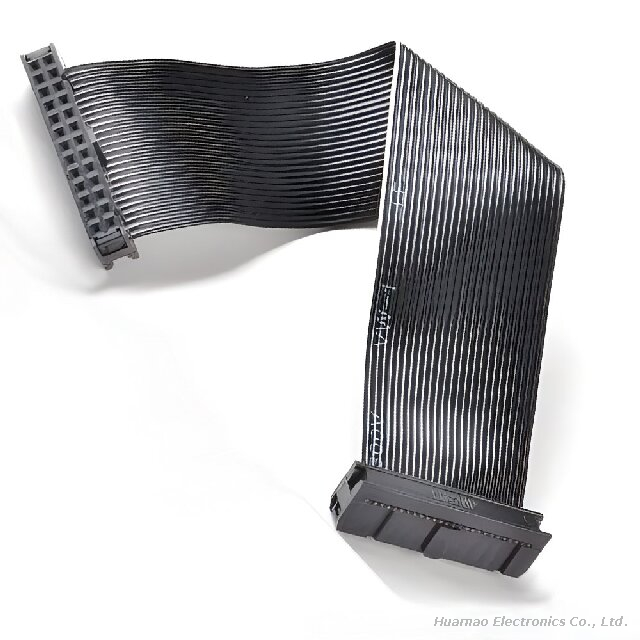

3M 40Pin UL2651 28AWG Black Flat Ribbon Cable

Parameters of 3M 40Pin UL2651 28AWG Black Flat Ribbon Cable

What is FFC?

Flat Flexible Cable (FFC) is a type of flexible electronics that utilizes flat solid conductors. FFCs are thin and flexible, making them ideal for high-density applications like laptops, cell phones, and other compact devices. Compared to traditional round cables, FFCs offer a more compact design, making them perfect for applications where space-saving and high performance are critical.

Features and Benefits of 3M 40Pin UL2651 28AWG Black Flat Ribbon Cable

Flexible and Compact Design: The FFC's flat construction allows it to fit into tight spaces, making it ideal for high-density applications like laptop motherboards and cell phone connections. Its flexibility ensures ease of routing and handling, even in tight enclosures.

Durability: The cable is made of high-quality materials, offering exceptional durability and flexibility. With 28AWG wires, it is engineered to withstand frequent bending and movement without losing performance.

Improved Performance: Thanks to its thin profile and UL2651 certification, the FFC cable offers better EMI/RFI suppression, reducing interference and improving signal integrity in critical systems.

Easy Installation: The reinforced stiffener at each end of the cable makes insertion easier and provides added strain relief. This design ensures that the cable remains securely connected, even in high-movement environments.

Applications of 3M 40Pin UL2651 28AWG Black Flat Ribbon Cable

Printer Connections: Commonly used in printers to link the print head to the motherboard, ensuring smooth data transmission and reliable operation.

Scanner and Copier Systems: Ideal for signal transmission between the scanning head and the motherboard, ensuring fast and accurate data transfer.

LCD Appliances and Displays: Provides reliable connections in LCD screens and other display systems, where space-saving and durability are essential.

Signal Transmission and Plate Board Connections: Often used in devices requiring efficient and high-speed data transfer, the FFC cable is perfect for signal transmission between plate boards and other components.

Advantages of Using FFC Cables

Space Efficiency: FFC cables take up significantly less space compared to traditional round cables, making them an excellent choice for designs with limited space.

Greater Flexibility: Their flat and flexible design offers superior adaptability, which is ideal for high-flex applications where round cables would be too bulky or rigid.

Reduced Weight: FFC cables are lighter than their round counterparts due to their simplified design, making them suitable for lightweight devices and portable equipment.

Cost-Effective: In addition to their physical benefits, FFC cables can help reduce the overall cost of assembly by minimizing the need for additional components like cable ties or conduits.

Product Features

Compact and Flexible: Ideal for high-density applications where space-saving is crucial.

High Durability: Flexible design that withstands high levels of strain and pressure.

Shielded for Interference Resistance: Protects against EMI and RFI, ensuring stable signal transmission.

Wide Application: Suitable for use in printers, scanners, LCD appliances, and more.

Temperature Resistance: Operates efficiently in temperatures from -25°C to +85°C.

Conclusion

The 3M 40Pin UL2651 28AWG Black Flat Ribbon Cable offers a reliable and space-efficient solution for today's high-density electronic applications. With its miniaturized design, superior flexibility, and excellent shielding properties, it is ideal for use in various electronic devices and systems. Whether you need it for printers, signal transmission, or compact electronics, this wire is a perfect choice.

For more information or to place an order, feel free to contact us at Huamao Cable today. We are committed to providing you with top-quality FFC wire solutions for your business needs.

FAQs

Q1: What is FFC and where is it used?

A1: FFC stands for Flat Flexible Cable. It’s commonly used in compact devices like laptops and mobile phones, as well as printers, scanners, and LCD appliances.

Q2: Can I customize the cable length and color?

A2: Yes, the cable length and color can be customized according to your needs. Contact us for specific requirements.

Q3: What is the temperature range of the 3M 40Pin wire?

A3: The operating temperature range is from -25°C to +85°C, making it suitable for various environments.

Q4: Does the 3M 40Pin cable offer shielding for EMI/RFI?

A4: Yes, this wire is shielded to prevent electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring stable signal transmission.

Q5: What is the maximum contact resistance for this cable?

A5: The maximum contact resistance is 20mΩ, ensuring efficient signal transfer.
