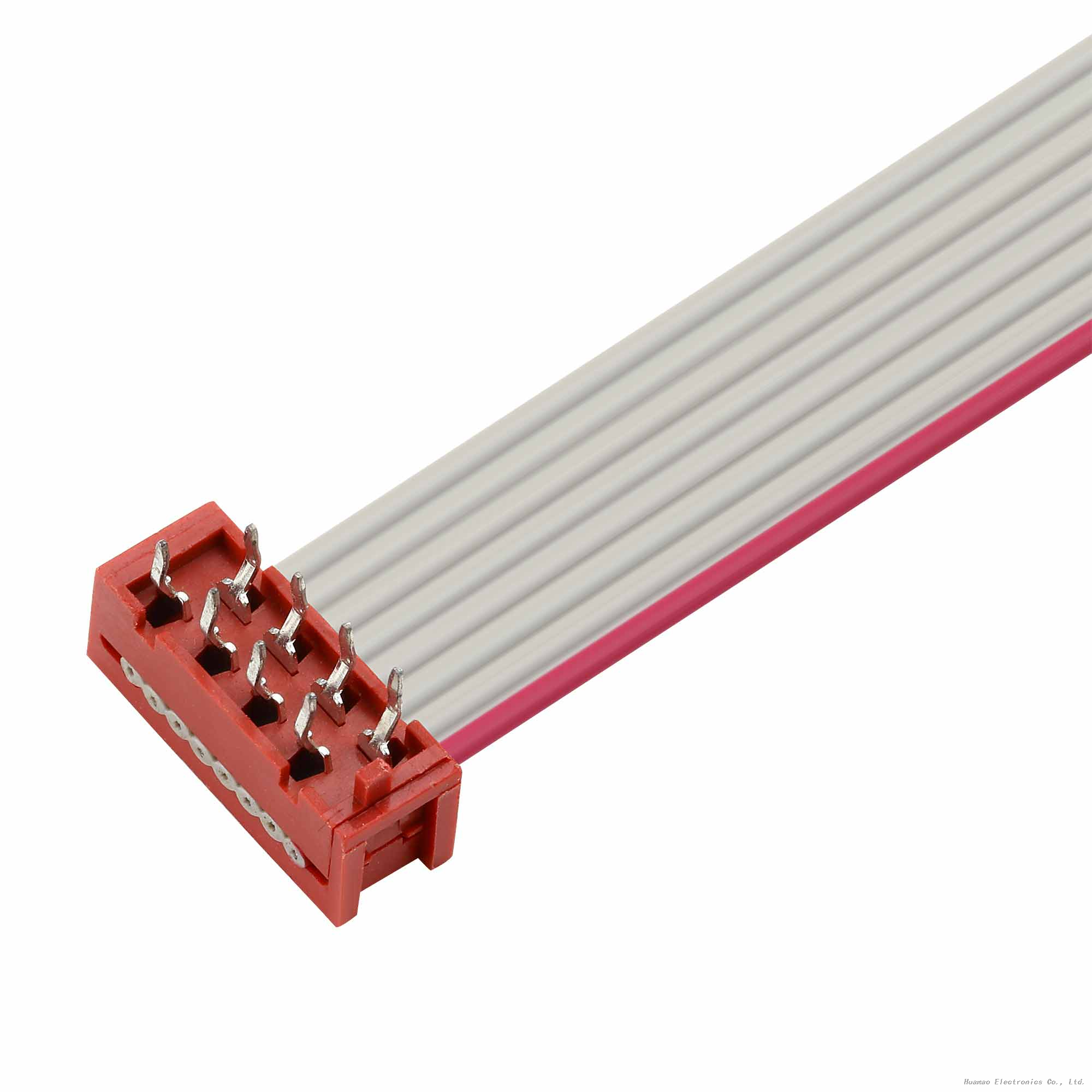

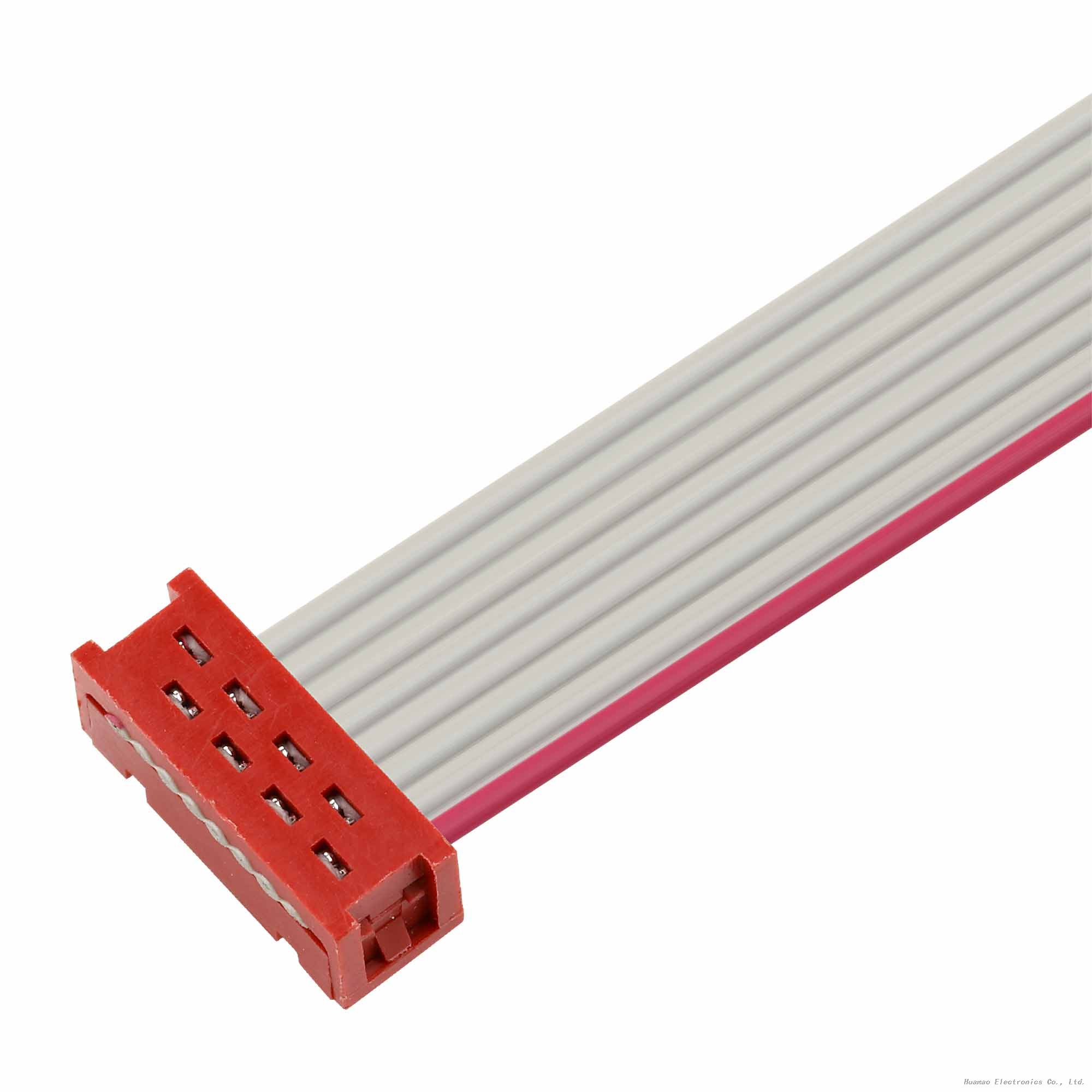

Picoflex Ribbon Cable Assemblies
Picoflex Ribbon Cable Assemblies deliver a wide variety of standard lengths and circuit sizes. They are readily available and ideal for early project development
One-piece connector housing
Provides excellent cable retention for
easy control of inventory
Gold plating option
Offers higher mating cycle and eliminates
fretting in high-vibration applications
Dual-beam contacts
Provide 4 points of contact for each
circuit at the mating interface for a
reliable connection.
Termination windows and clearance slots
Allow for visual check after cable assembly build for enhanced quality
Ejection tooling slots
Ease unmating of cable assembly from header
Polarized connector
Avoids mis-mating between cable assembly and header
Insulation displacement
Termination
Permits daisy chaining
Scalloped profile
Ensures precise positioning of the ribbon cable
Final seat slots
Provide locking mechanism between mated cable assembly and header
Origin country:China
Length: Customizable
Connector Brand:Molex, JST, JAE, HIROSE etc original or equivalent
Certification:OEM ODM Accept
Wire Gauge:1007/1015/1061/1571/2651 22AWG/24AWG/26AWG/28AWG
Material:PVC + Tinned Copper
Applications:Consumer,Industrial / Industrial Automation,Medical,Sustainable Energy
Voltage (max.): 250V
Current (max.): 1.2A
Contact Insertion Force: 1.7N (max)
Contact Retention to Housing: 7N (min)
Pitch: 1.27 mm
Wire Gauge: 28 AWG
Housing: Polyester
Contact: Phosphor Bronze
Plating: Tin
Operating Temperature: -40 to +105°C
Receptacle Used: Series 90327
