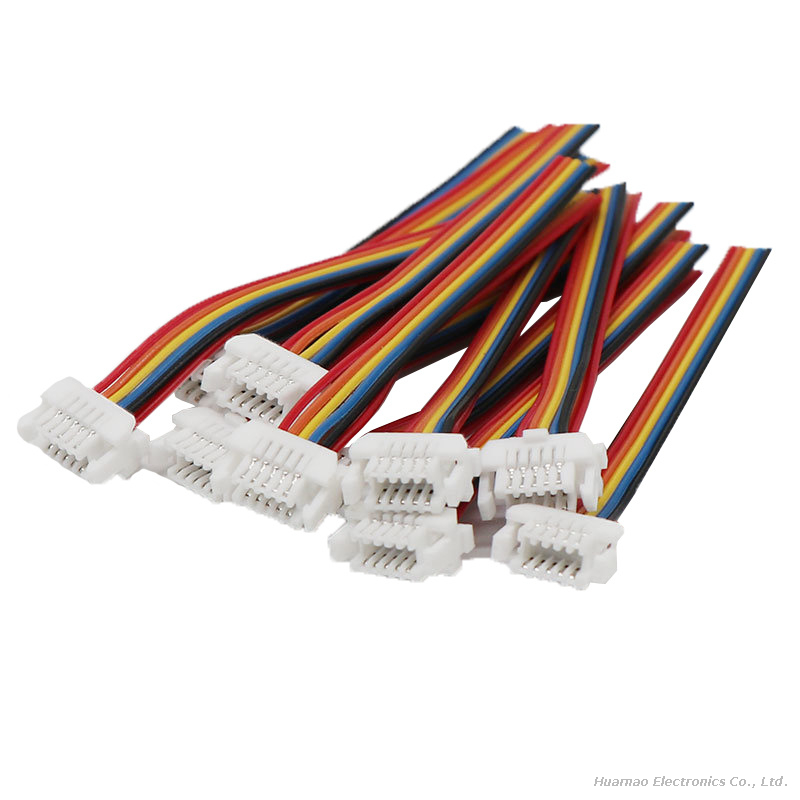

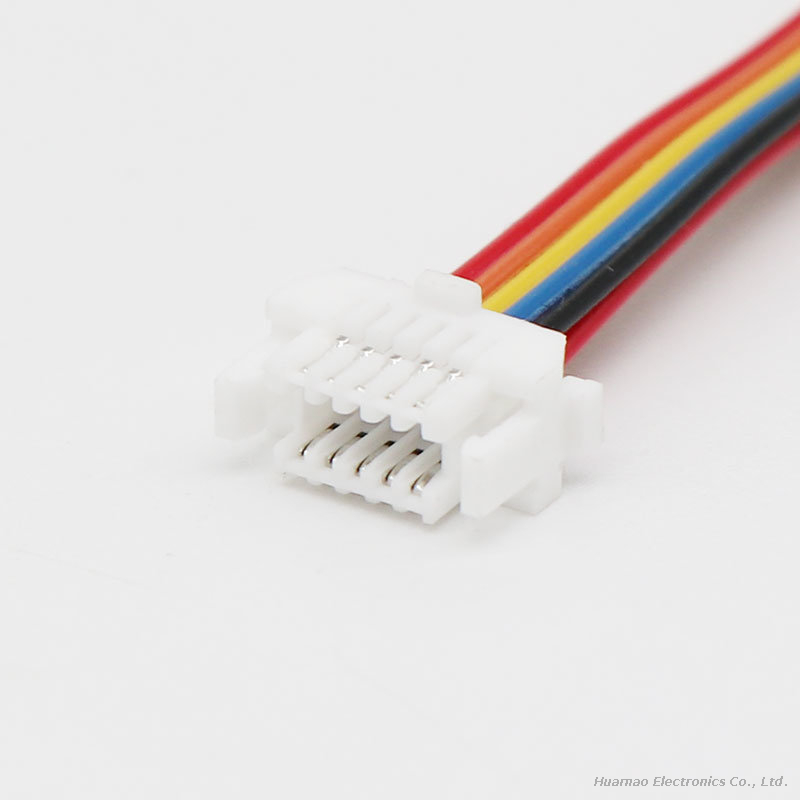

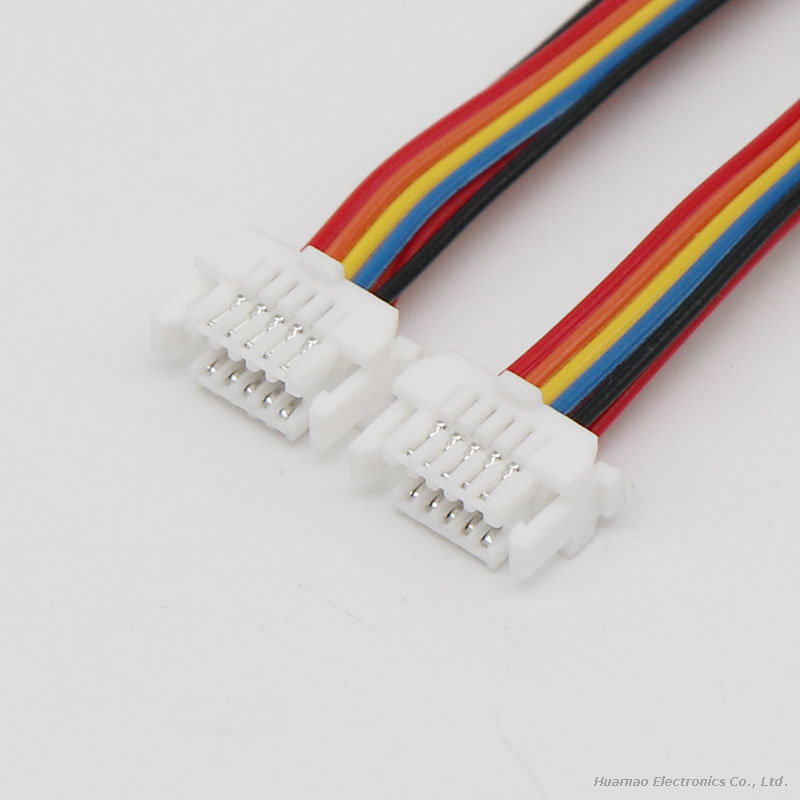

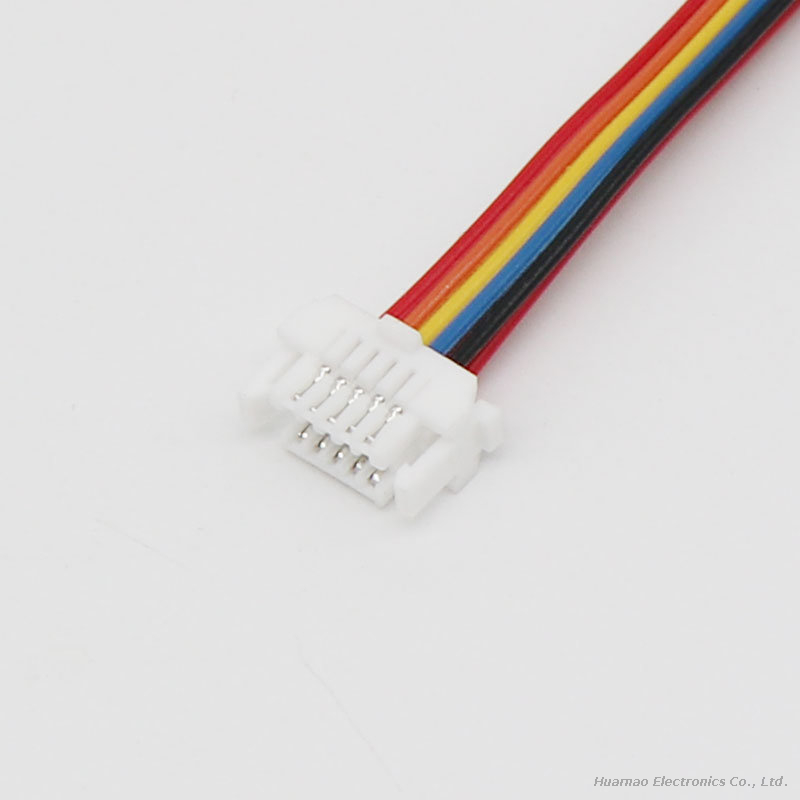

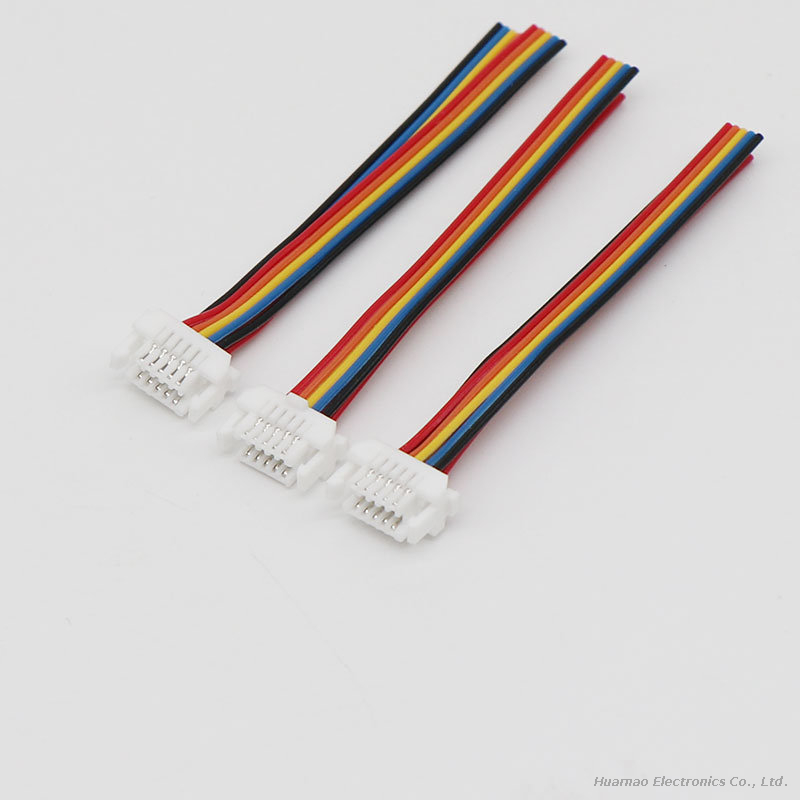

Jst-Shldp-10V-S 1.0mm Pitch Double Row Terminal Wire Harness Cable Assembly

Jst-Shldp-10V-S 1.0mm Pitch Double Row Terminal Wire Harness Cable Assembly

• Current rating: 1.0 A AC/DC (AWG #28)
• Voltage rating: 50 V AC/DC
• Temperature range: -25°C to +85°C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 30 mΩ max.
After environmental tests/ 40 mΩ max.
• Insulation resistance: 100 MΩ min.
• Withstanding voltage: 500 VAC/minute

Model:
Jst Shldp Series
Brand:
Huamao
Code:
HM10884A

Availability:

Quantity:



Inquire Add to Basket

Jst-Shldp-10V-S Wire Terminal Wire Double Row Terminal Wire Power Cable Harness Cable Assembly

Product Description

Product Profile

Series	SHLD connector
Category	Crimp Style Connectors (Wire-to-Board type)
Type	Crimp style, Compact type, Double-row Disconnectable type
Feature	With secure locking device

Specification

Pitch	1.0mm
Current rating	1.0A (AWG#28)
Voltage rating	50V
PC board mounting direction	Top entry, Side entry

Product description

*Compact, double-row design：Mounting height is 5.5mm for side entry type. Just fitting to the high density packaging
*Line-up the type with Secure locking device：Secure locking device prevents accidental disconnection.
