The high-density connector system is based on a 2.00 x 2.00 mm grid pattern and provides complete design flexibility for wire-to-board, board-to-board, and cable-to-board applications.

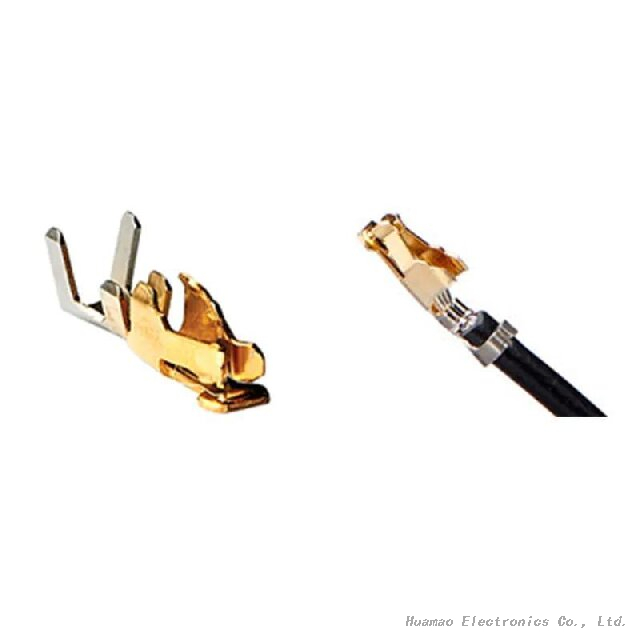

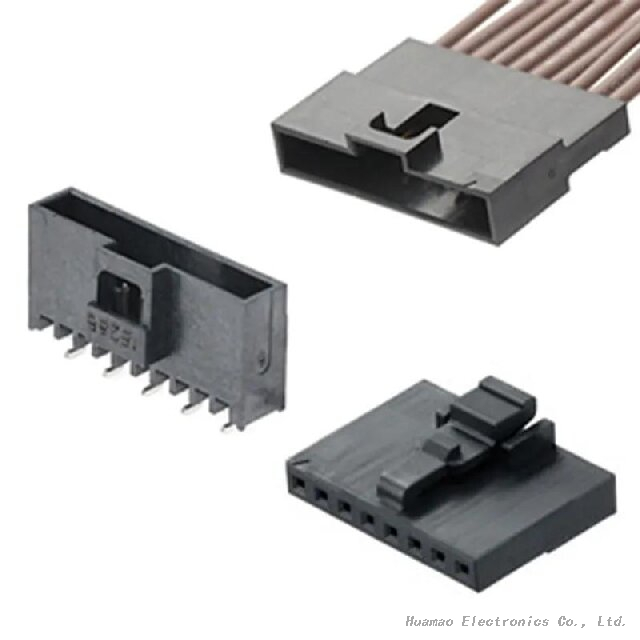

Available in gold or tin, Molex's Milli-Grid family includes crimp terminals, housings, headers and receptacles. Receptacles are available in single and double row versions with a variety of mating and termination options. Headings are available in masked and unmasked styles.
Molex Signal Wire-to-Wire/Wire-to-Board Connectors and Connector Systems feature a variety of wire-to-board signal connectors that offer design flexibility. Molex Signal WtW/WtB connectors and connector systems are ideal for personal computers and lighting, automotive, and industrial applications, depending on the model.
Molex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. These connectors provide space savings, high-density signals, and durability. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.

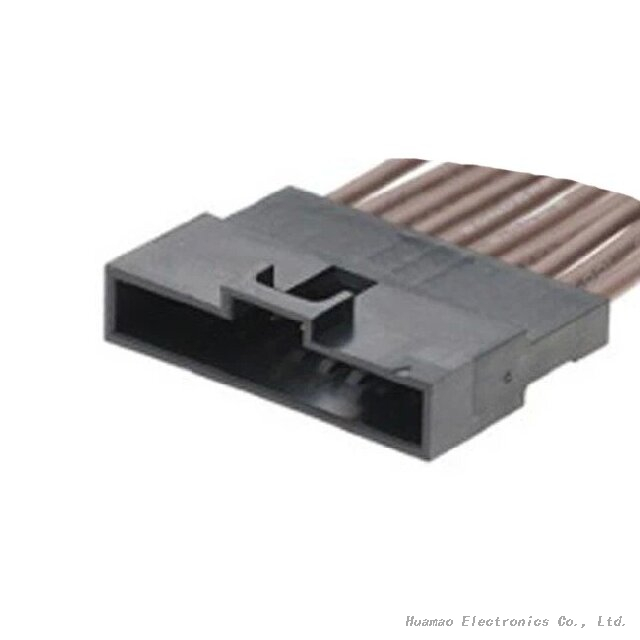

Molex 151098 Series connector offers complete design flexibility for wire-to-board, board-to-board, or cable-to-board connections in PC, consumer, telecom, and other electronic industries. The Milli-Grid 2mm pitch connectors feature IDT receptacle strain relief that enhances cable retention and provides a strong retention force to the headers with locking ramps. These 2mm pitch connector systems come with a black or grey high temperature, UL 94V-0 rated housing material and can operate in the temperature range of -55°C to 105°C. The Milli-Grid connectors work with a minimum insulation resistance of 1000MΩ and maximum contact resistance of 40mΩ. Molex Milli-Grid 2mm pitch connector system is used in vending machines, gaming machines, exercise equipment, satellite radio, and security systems.
Features
More Molex Connectors
1510980002 | 1510980003 | 1510980004 |
1510980005 | 1510980006 | 1510980007 |
1510980008 | 1510980009 | 1510980010 |
