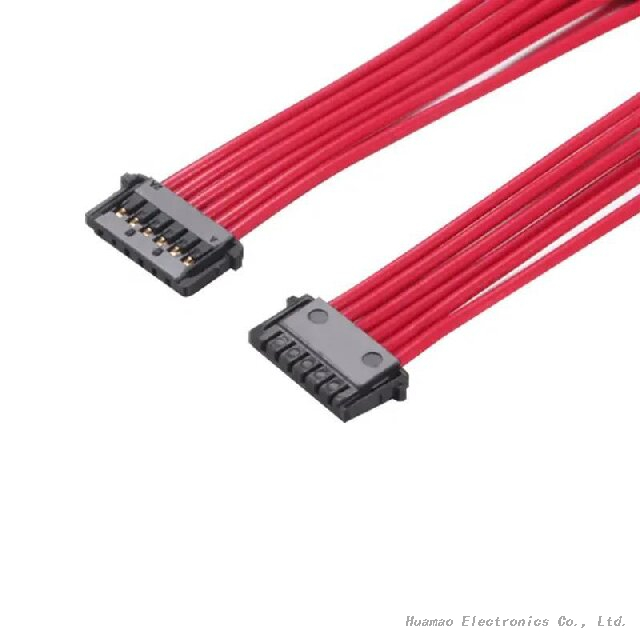

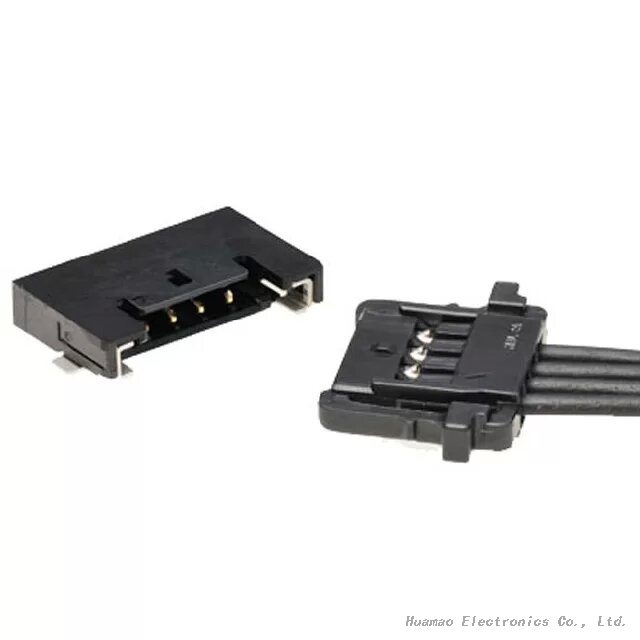

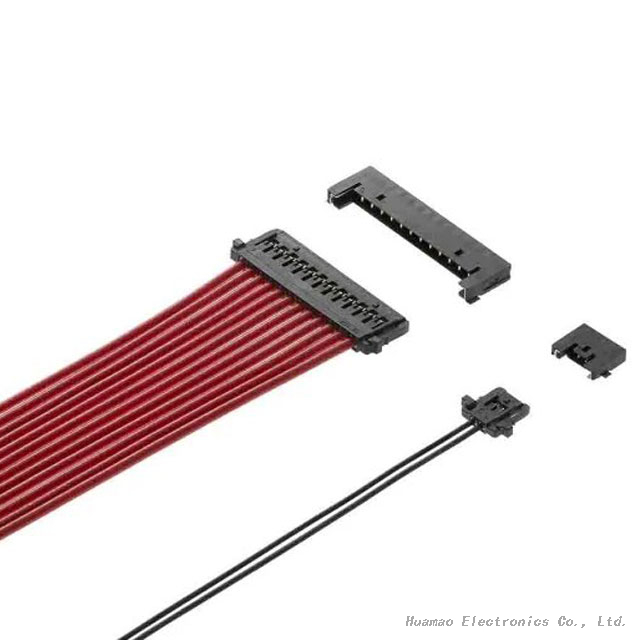

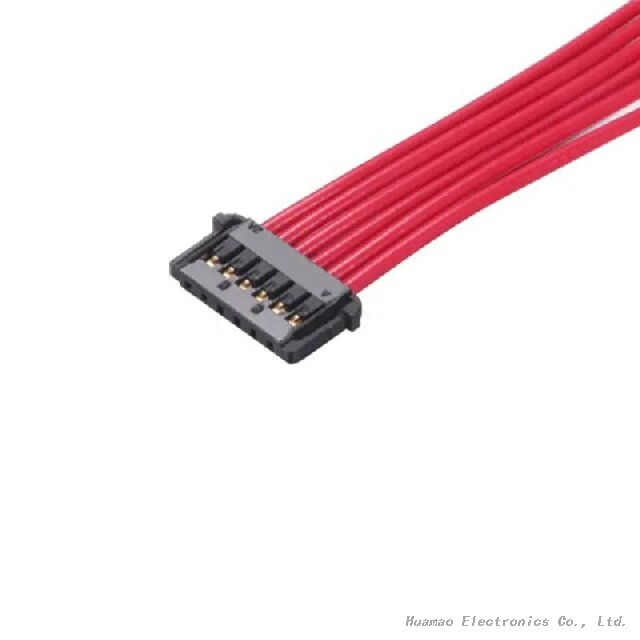

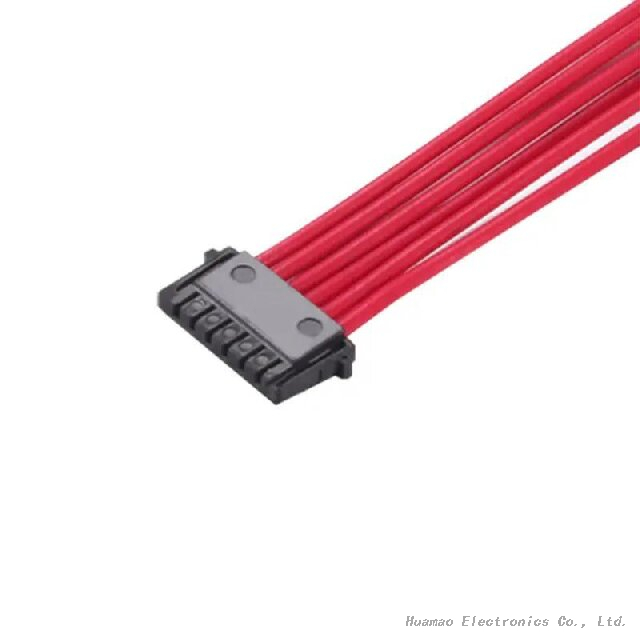

Molex 's 1.00 mm Pico-Lock wire-to-board connector system is ideal for applications requiring ultra-low profile, high current, and secure locking.

Available in both 1.00 and 1.50mm pitch versions, the Pico-Lock wire-to-board system offers an ideal combination of low profile, high current and durable locking for any application requiring space savings and secure mating retention. Notebook and Tablet PCs with large graphic displays continue to get thinner in design and more powerful in functionality. This combination has created a need for a new style of connector that offers a very low profile, high current-carrying capability and a robust positive lock to maintain connection even when subjected to shock or vibration.  Laptops and tablet PCs with large graphics displays require thinner designs and greater functionality. Achieving this combination requires a connector with an ultra-thin profile, high current-carrying capabilities, and a rugged and reliable locking mechanism that maintains the connection even when exposed to shock or vibration. The Pico-Lock system, available in a 1.00 mm pitch version, is the first miniature wire-to-board connector system to combine all of these features to meet every need.
