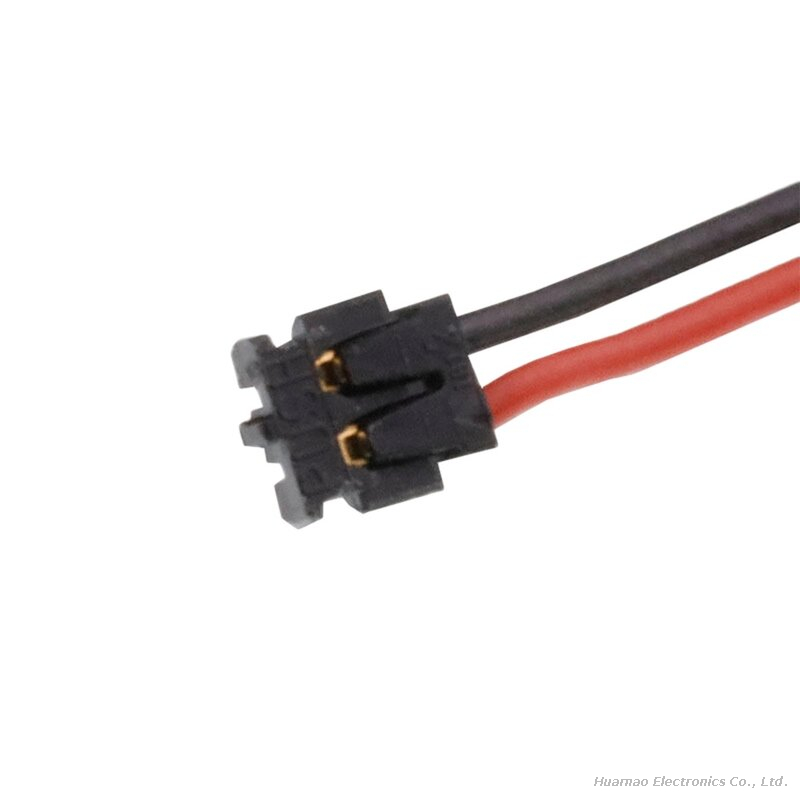

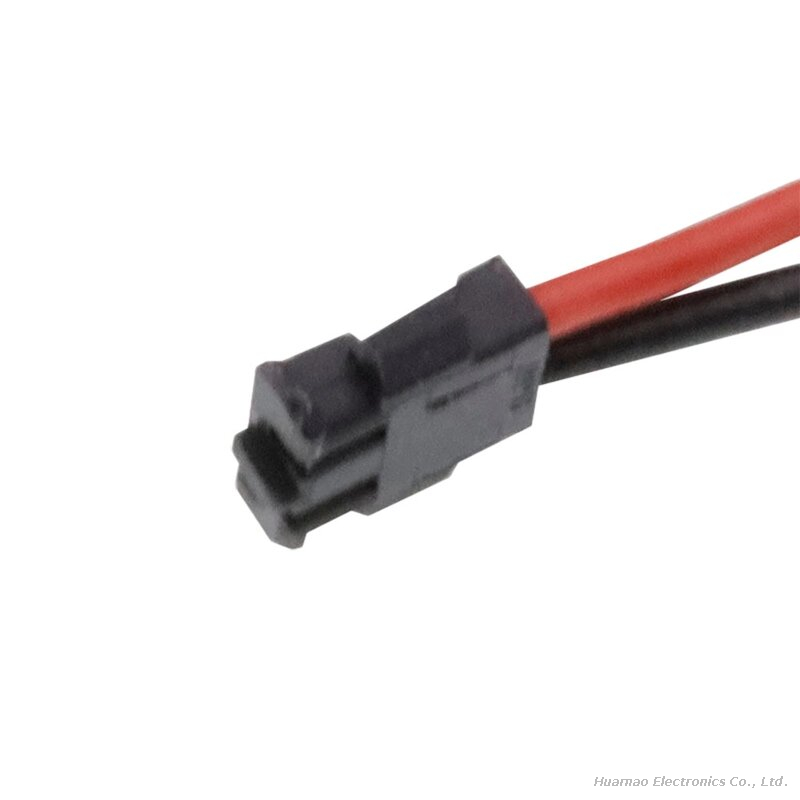

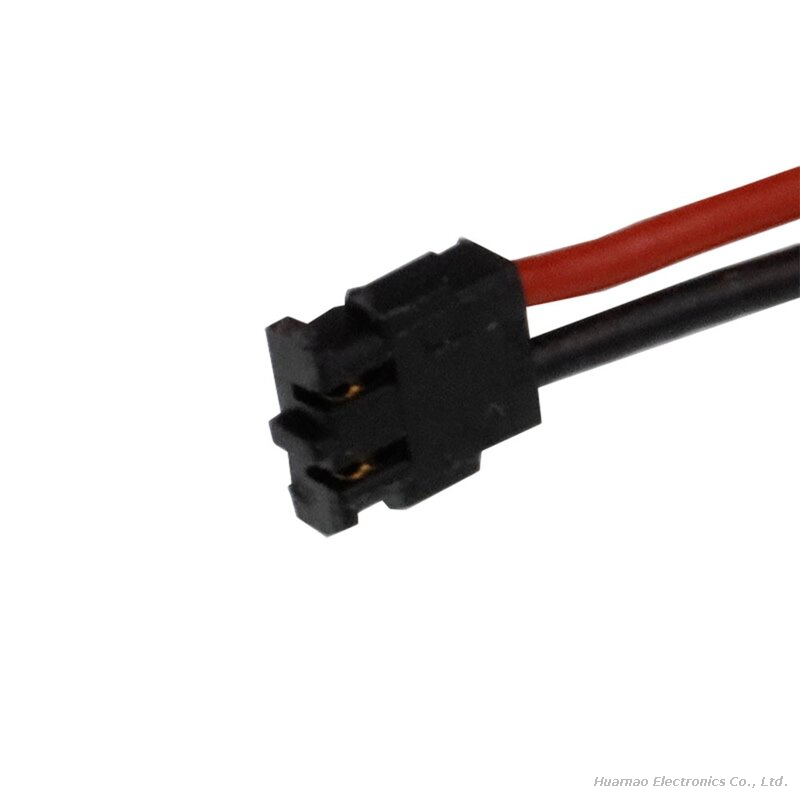

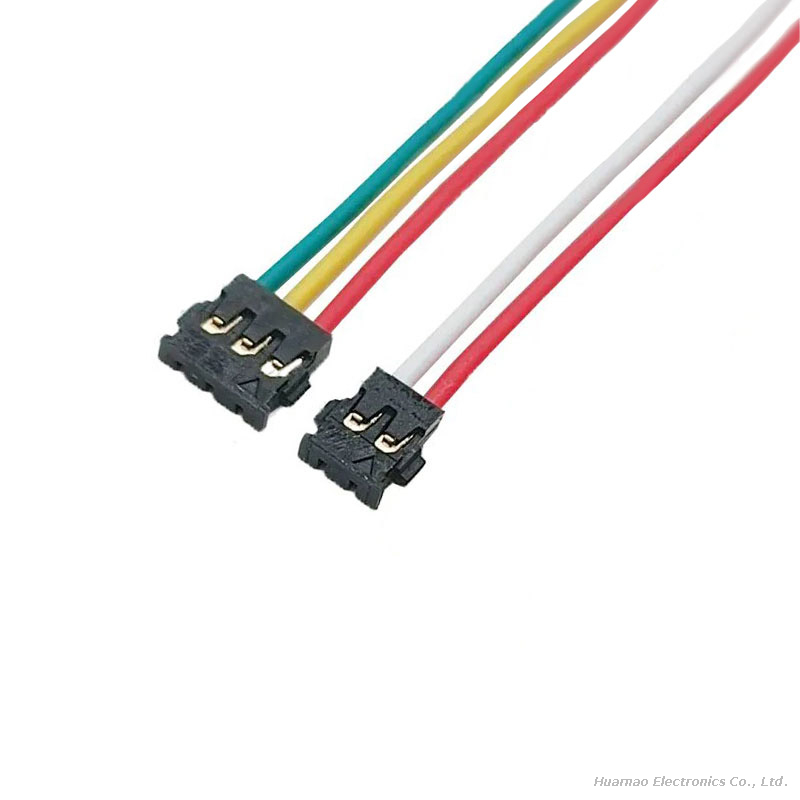

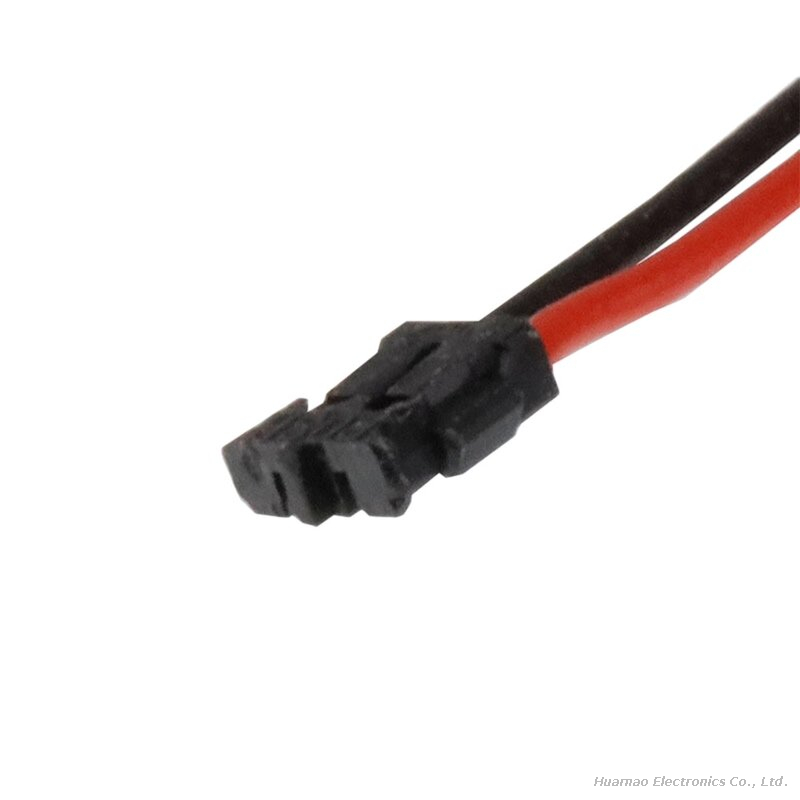

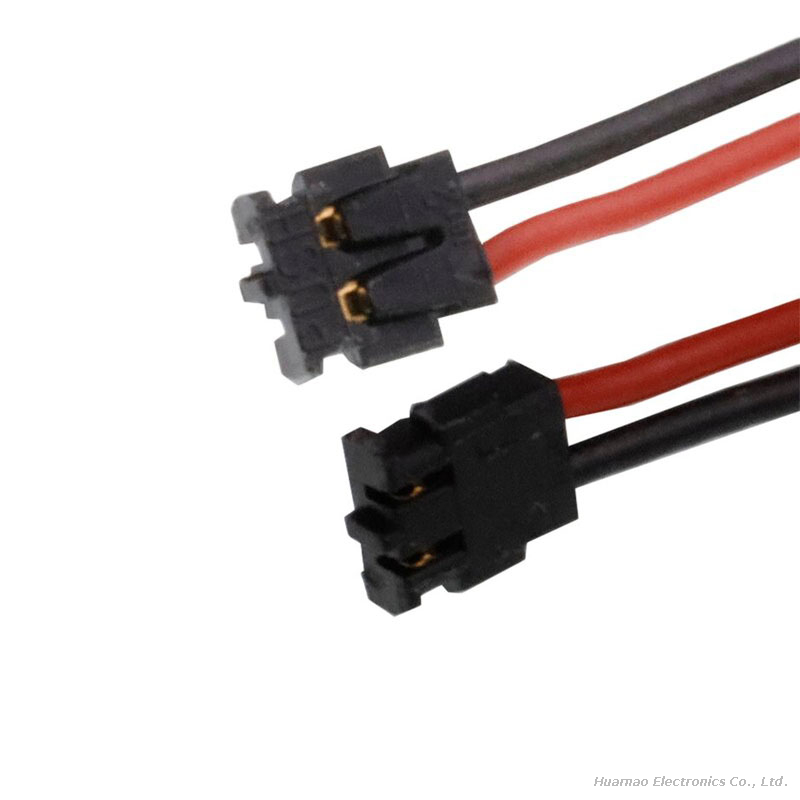

Looking for precision LED wiring solutions? Our custom JST ACH wire harness delivers reliable connections for LED applications. Each assembly undergoes strict quality testing protocols.
Need specialized wire harness configurations? The 1.20mm pitch design supports compact LED installations. Our automated production ensures consistent terminal crimping quality.
Searching for durable LED connection solutions? These wire assemblies feature tin-plated terminals and PVC jacketing. The design withstands temperatures from -20°C to +85°C.
Professional wire harness manufacturing requires precision. Our JST connectors accommodate 22-26 AWG cables for versatile LED applications. Each connector passes rigorous pull-force testing.
The connector series supports:
LED display systems
Medical device lighting
Automotive interior illumination
Industrial control panels
Smart lighting networks
| Model Number | jst ACH 1.2mm connector wire Harnesses |
| Type | wire housing |
| Place of Origin | China Guangdong |
| Product name | jst 1.2mm connector |
| Color | Black |
| Material | Nylon/Phosphor brass |
| Pitch | 1.2mm |
| Plating | Tin Plating |
| Keywords | molex 1.2mm connector |
| Gender | male/female |
Contact our technical team for custom wire harness specifications and sample requests. Global shipping available for all orders.
Our automated production line implements precision crimping technology for JST ACH connectors. Each wire harness undergoes systematic quality control procedures, ensuring consistent electrical performance and mechanical stability.
The 1.20mm pitch design optimizes space utilization in compact LED applications. We integrate waterproof sealing solutions and vibration-resistant structures to enhance durability. Our engineering team specializes in custom wire length configurations and terminal specifications.
Every LED wire harness assembly passes comprehensive electrical testing protocols. This includes pull-force validation, temperature cycling, and insulation resistance verification. Our manufacturing process adheres to IPC/WHMA-A-620 standards for wire harness production.
Custom wire harnesses support modern vehicle LED systems, including interior ambient lighting and exterior display modules. Our assemblies meet automotive-grade specifications for temperature resistance and vibration protection.
The precision wire assemblies serve critical medical imaging devices and diagnostic equipment displays. Each harness maintains stable signal transmission for accurate visual output in healthcare applications.
Our LED wire harness solutions power digital signage and commercial lighting installations. The assemblies support various current requirements and provide flexible configuration options for large-scale display networks.
All components meet RoHS2 requirements and utilize UL-listed materials. The wire insulation features flame-retardant properties and environmental protection ratings suitable for diverse installation environments.
We offer multiple wire gauge selections from 22-26 AWG, color-coding systems, and specialized coating treatments. Our engineering team provides connector orientation modifications based on specific application requirements.
Our technical experts assist with wire harness design optimization and component selection. We provide detailed documentation for assembly specifications and installation guidelines.
Each production batch undergoes thorough inspection processes, including dimensional verification and electrical parameter testing. We maintain detailed quality records for full production traceability.
Contact our engineering team for custom LED wire harness solutions and technical specifications. We provide comprehensive support from design conceptualization through production implementation.Authorized JST connector assembly manufacturer with ISO9001 and IATF16949 certifications.
Tel: +86-13826948503 (Bella)
+86-18145725878 (Carven)
E-mail: bella@wireharnesscn.com (Bella)
carven@wireharnesscn.com(Carven)
Address: No 915,Taian Road,Changan Town,Dongguan City,
Guangdong Province,CHINA
Q1: What's the minimum order quantity for custom JST ACH LED wire harness assemblies?
A1: We accept small batch orders for custom LED wire harnesses with flexible production scheduling.
Q2: How do you ensure the quality of LED wire harness crimping connections?
A2: Our automated crimping system performs real-time monitoring and pull-force testing for each terminal connection.
Q3: Can I get waterproof LED wire harnesses for outdoor display applications?
A3: Yes, we offer IP-rated sealing options specifically designed for outdoor LED lighting installations.
Q4: Do you provide samples of custom JST connector wire assemblies?
A4: We supply prototype samples with detailed test reports before mass production commitment.
Q5: What's the process for ordering custom wire lengths and terminal configurations?
A5: Submit your specifications through our online form for quick engineering review and production quote.
