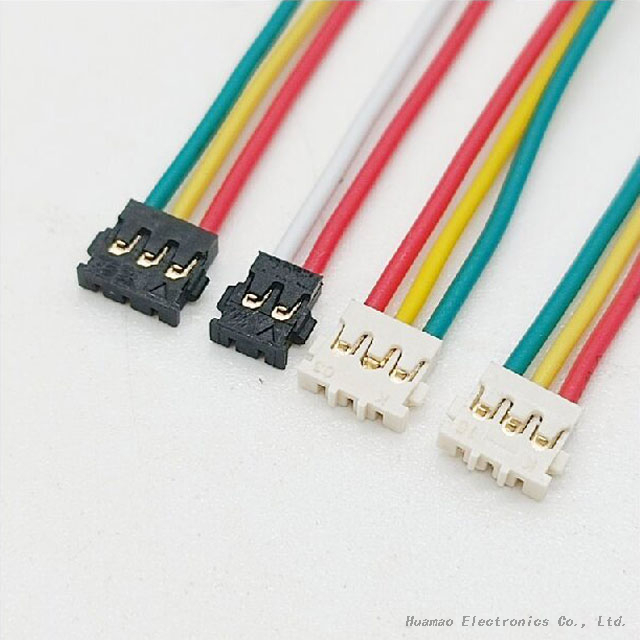

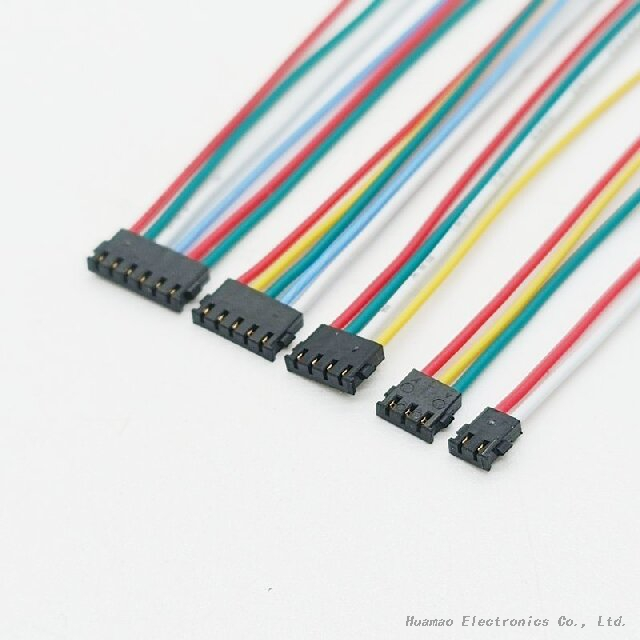

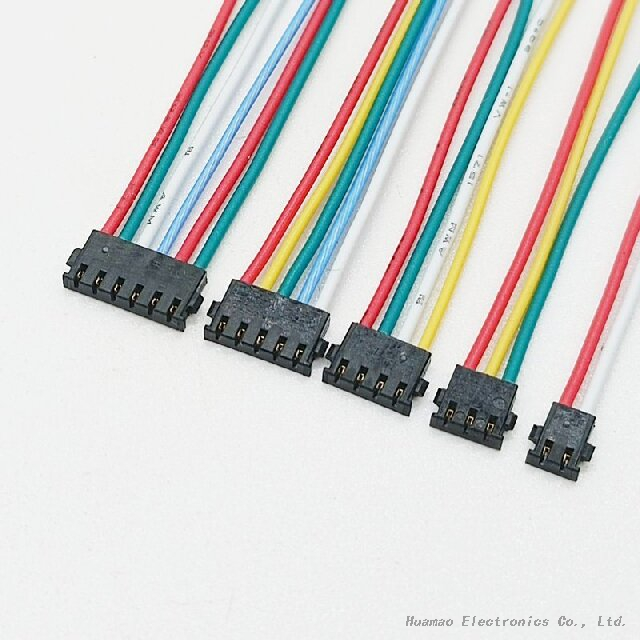

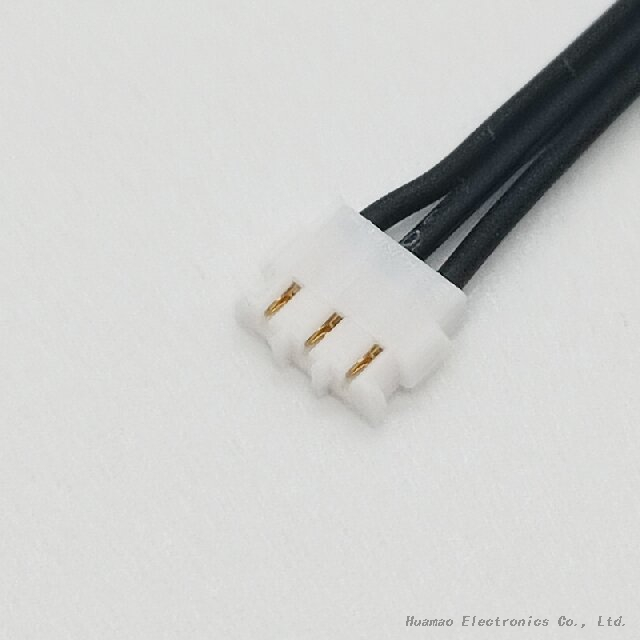

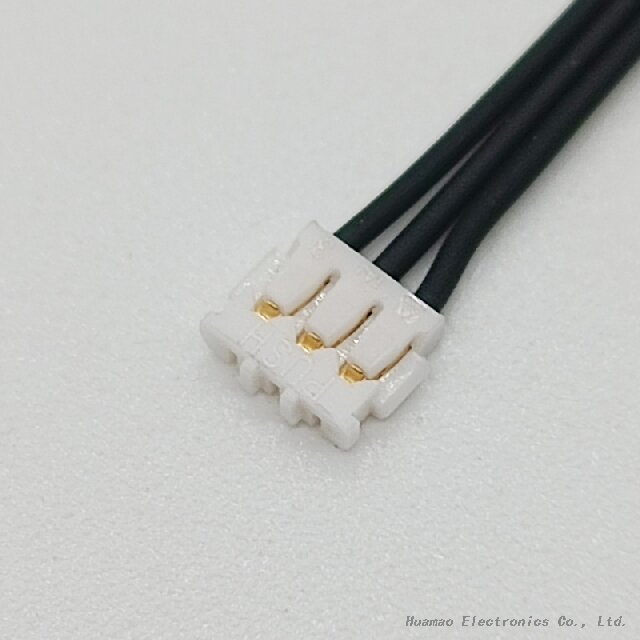

JST Achr Series Connector 1.2mm Pitch Wire Harness Assembly for Battery

JST Achr Series Connector 1.2mm Pitch Wire Harness Assembly for Battery

JST ACH series wire-to-board connectors were originally designed for DC power supply applications. These connectors have a 2.0 A current rating for both two and three circuits using 28 AWG wire. ACH series low profile connectors are only 1.4 mm (.055”) high and 4.3 mm (.169”) wide. Uniquely constructed, these 1.2 mm (.047”) pitch, wire-to-board connectors feature a socket housing that is mated with the header from the vertical direction, while the wires come out from the horizontal direction of the socket connector. The ultra-compact, low profile design provides flexibility for applications that require high performance connectors in tight spaces.

Model:
JST Achr Series
Brand:
Jst
Code:
HM10816A

Availability:

Quantity:



Inquire Add to Basket

JST Wire Harness 1.2mm Pitch Wire Harness 1.2mm Cable Assembly Wiring Harness for Battery JST Achr-03V-S Cable JST Cable Assembly

Product Description

Product description

•Current rating: 1 to 3 circuits/ 2 A AC/DC (AWG #28)4, 5 circuits/ 1.5 A AC/DC (AWG #28)

• Voltage rating: 50 V AC, DC

• Temperature range: -25℃ to +85℃(including temperature rise in applying electrical current)

• Contact resistance:Initial value/ 10 mΩ max.After environmental tests/ 20 mΩ max.

• Insulation resistance: 100 MΩ min.

• Withstanding voltage: 500 VAC/minute

• Applicable wire: Conductor size/ AWG #32 to #28 Insulation O.D./ 0.38 to 0.63 mm

ACH series disconnectable, crimp-style connectors are currently available in two and three circuits rated 2.0 A (AC/DC) (28 AWG) at 50 V AC/DC. 30 AWG to 28 AWG wires are accommodated. The temperature range is –25°C to +85°C (including temperature rise in applying electrical current.) The header plating is lead free and complies with the European RoHS directive. Headers are provided on embossed tape for automatic insertion equipment.

• Top entry but side feed type

• Connector for DC power supply

• Corresponding to sucking nozzle of pickand place machine

Specifications:

1. Current Rating: A crucial parameter in any electrical connector, the JST ACH 3 pin housing boasts a commendable current rating of 2A AC/DC. This rating ensures that the connector can handle substantial electrical loads without compromising on safety or performance.

2. Voltage Rating: With a voltage rating of 50V AC/DC, the ACHR-03V-S is well-equipped to handle a wide range of voltage requirements. Whether it’s low-voltage applications or more demanding electrical systems, this connector delivers consistent performance and reliability.

3. Insulation Resistance: Maintaining insulation integrity is vital in preventing electrical mishaps and ensuring the longevity of electrical systems. The JST ACH 3 pin housing excels in this aspect with a minimum insulation resistance of 100MΩ, guaranteeing robust insulation properties.

4. Withstanding Voltage: To withstand transient voltage spikes and surges, the ACHR-03V-S is designed with a high voltage withstand capability of 500VAC for 1 minute. This feature enhances the safety margin of the connector, making it suitable for diverse operating conditions.

5. Contact Resistance: Low contact resistance is instrumental in minimizing power loss and ensuring efficient electrical conductivity. The ACHR-03V-S impresses with a maximum contact resistance of 20mΩ, facilitating seamless electrical transmission.

6. Operating Temperature: From extreme cold to scorching heat, the JST ACH 3 pin housing remains unfazed, thanks to its operational temperature range of -25℃ to +85℃. This wide temperature tolerance makes it adaptable to various environmental conditions and applications.

Material and Color:

The ACHR-03V-S is constructed with high-quality materials to ensure longevity and reliability. The insulator (housing) is crafted from Nylon 66, renowned for its robustness and flame-retardant properties (UL94V-0). Additionally, the connector comes in an elegant white color, adding a touch of sophistication to your electrical assemblies.

Applications:

The versatility and performance of the JST ACH 3 pin housing make it an ideal choice for a myriad of applications across industries. Whether it’s automotive electronics, consumer electronics, industrial machinery, or telecommunications equipment, this connector proves its mettle in diverse settings.

Conclusion:

In summary, the ACHR-03V-S stands tall as a pinnacle of excellence in the realm of connectors. With its impressive specifications, durable construction, and versatile applications, it offers a reliable solution for your electrical connectivity needs. Whether you’re a seasoned professional or an enthusiast embarking on an electrical project, rest assured that the ACHR-03V-S will deliver unparalleled performance and peace of mind.
