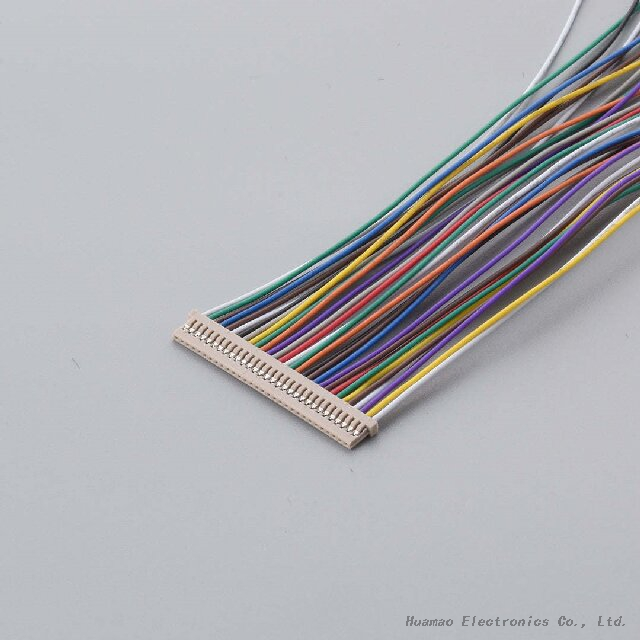

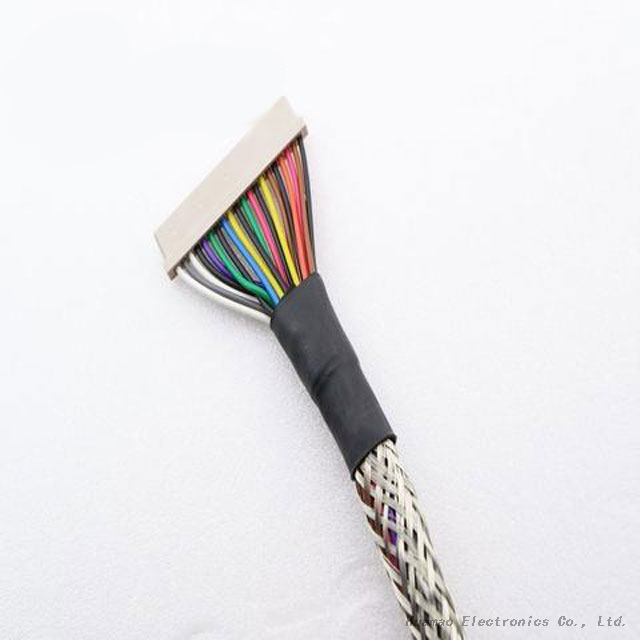

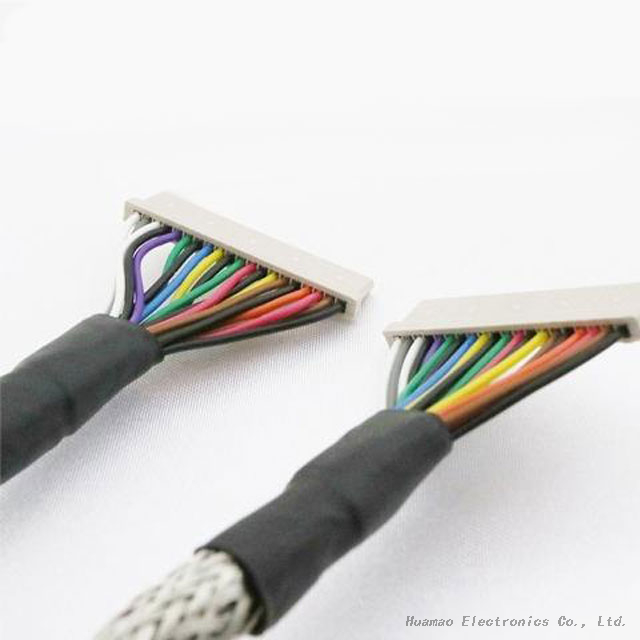

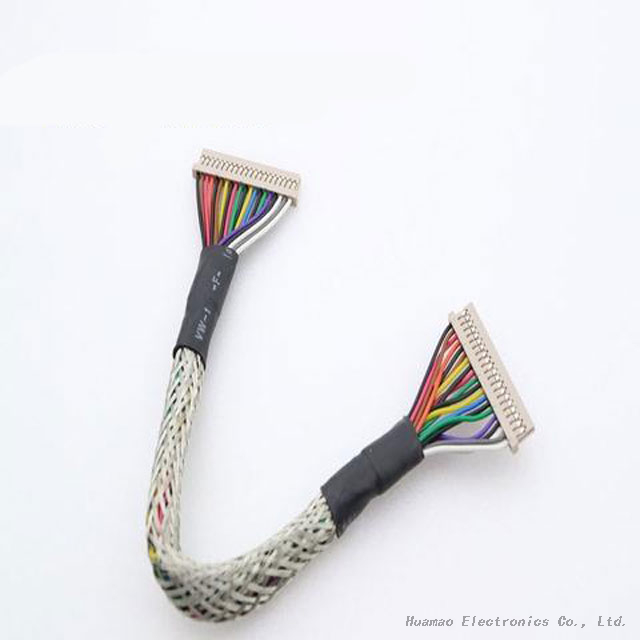

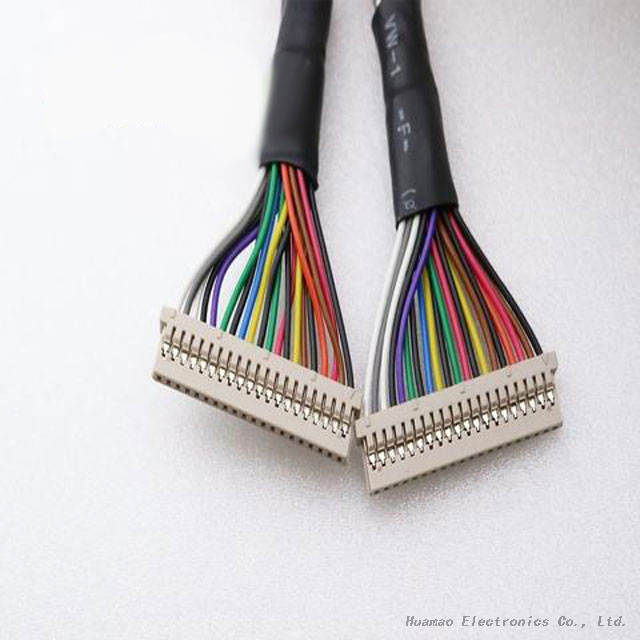

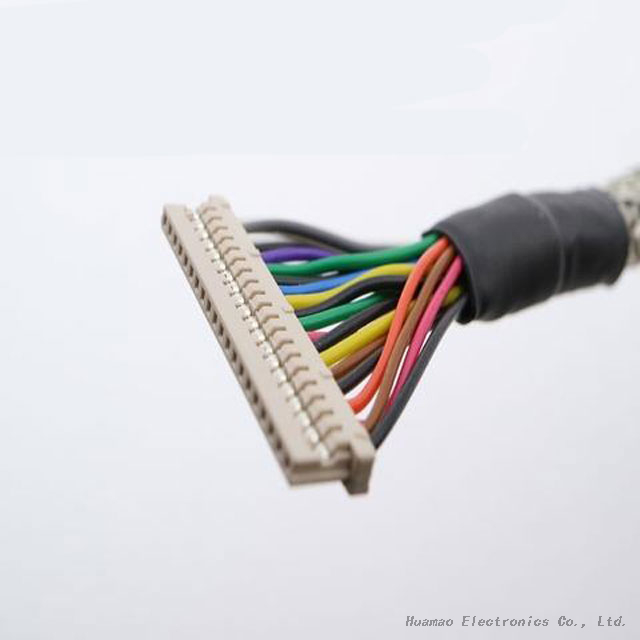

Hrs DF14 series 1.25mm Pitch Wire Harness Connector Cable Assembly for Battery

Hrs DF14 series 1.25mm Pitch Wire Harness Connector Cable Assembly for Battery

Features
1.25mm Pitch, Low Profile Crimp Connector
Rated Current 1.0 A
Rated Voltage (AC) AC 150.0 V
Rated Voltage (DC) DC 150.0 V
Withstanding Voltage 500 V Max

Operating Temperature -35 ℃ - 85 ℃
Performance Characteristics LVDS

Model:
Hrs DF14 series
Brand:
Hrs
Code:
HM10820A

Availability:

Quantity:



Inquire Add to Basket

Hrs Wire Harness 1.25mm Pitch Wire Harness Hrs DF14 series Cable Hrs DF14 series Cable Assembly 1.25mm Cable Assembly 1.25mm Cable Assembly for Battery

Product Description

Product description

1.Low Profile DF14 is a right angle connector that enables a low profile on the board. Signals can be routed in places where there is no space between boards using DF14. The on-board type, DF14(A), has a board mounted height of 2.5mm. The offset type, DF14H, has an even lower profile with a board mounted height of 1.6mm.

2.Pick & Place Mounting The header has a vacuum suction surface and embossed tape packaging for pick & place mounting. Additionally, tube packaging is available for the on-board type.

3.Four-wall Design The box-shaped header prevents prying and mis-insertion. The walls on the header prevent issues resulting from friction to the board cause by the socket. Retention tabs are added to prevent solder peeling.
