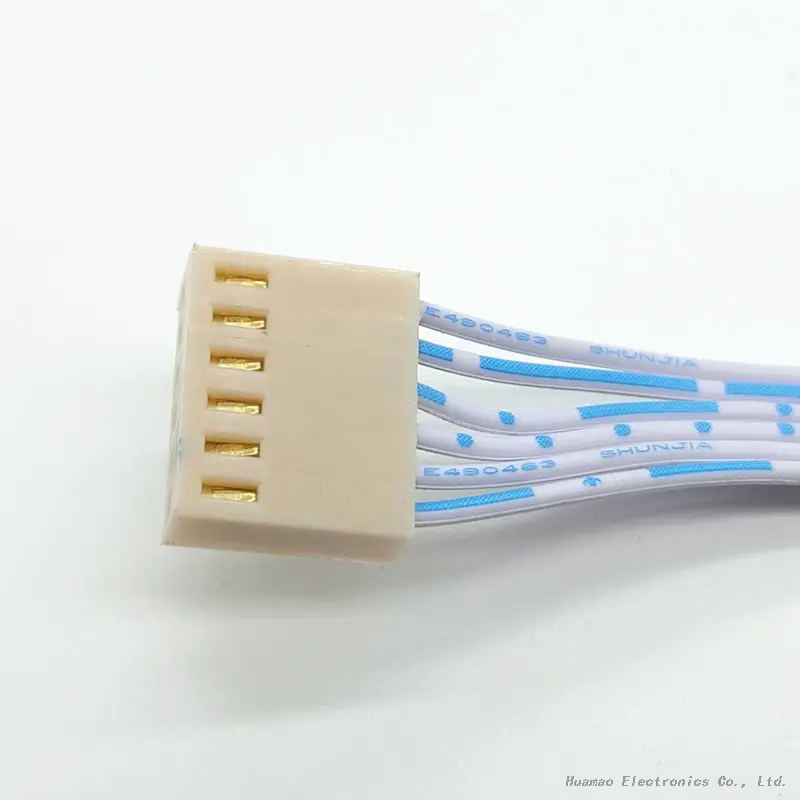

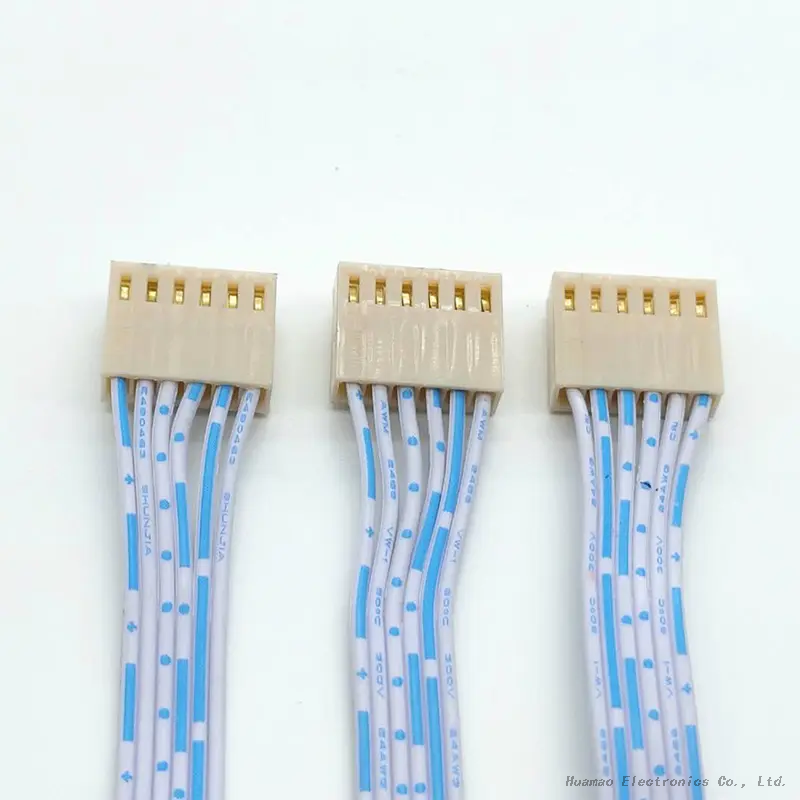

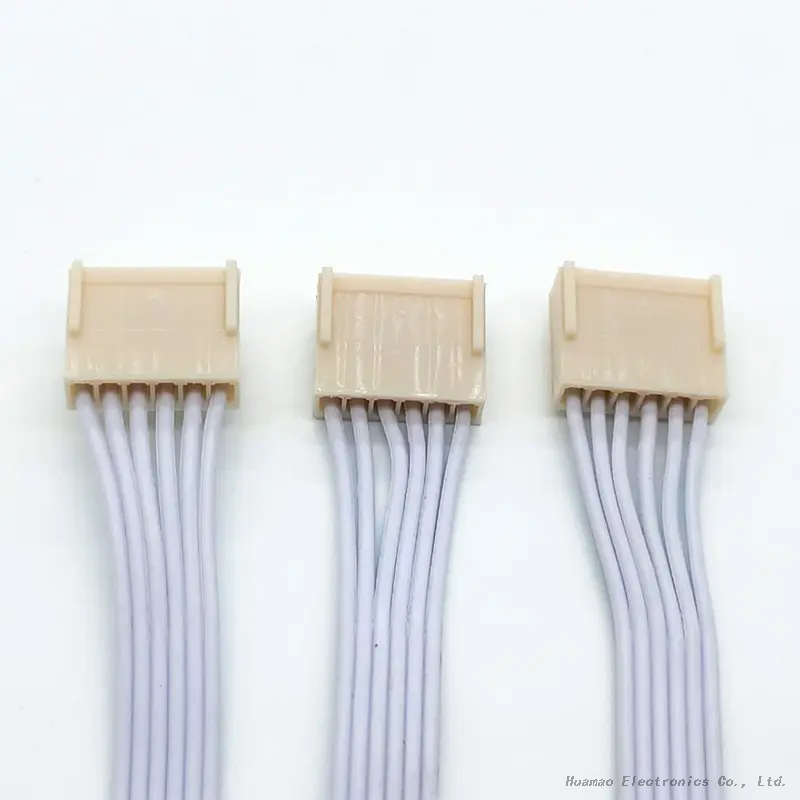

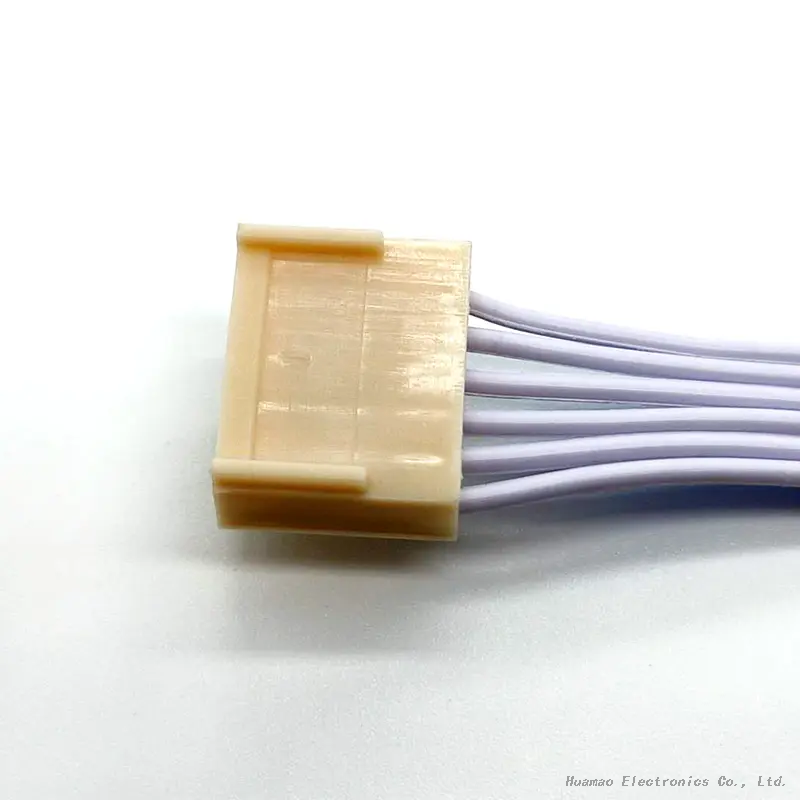

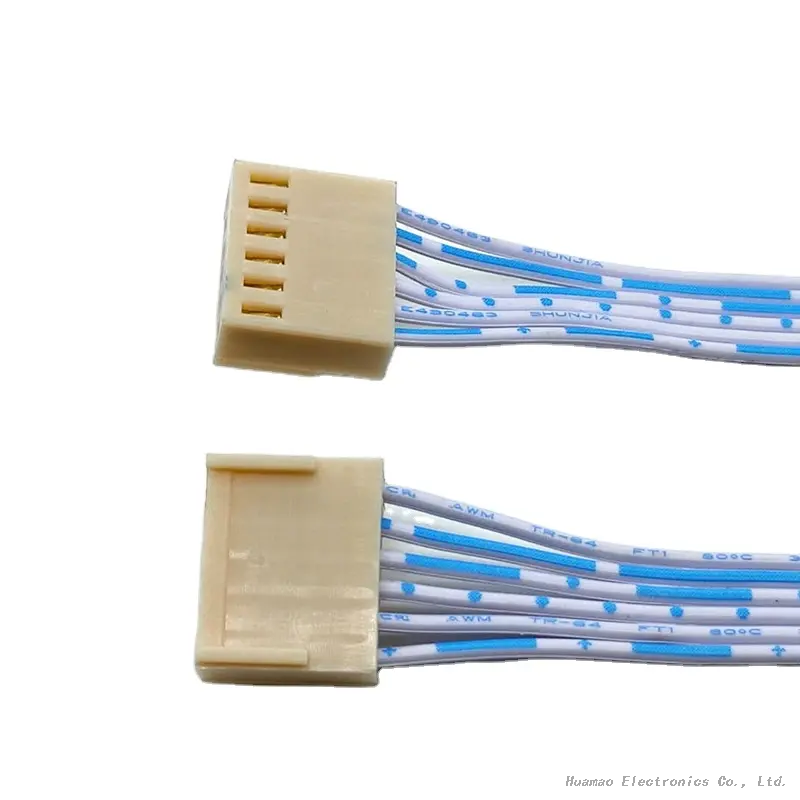

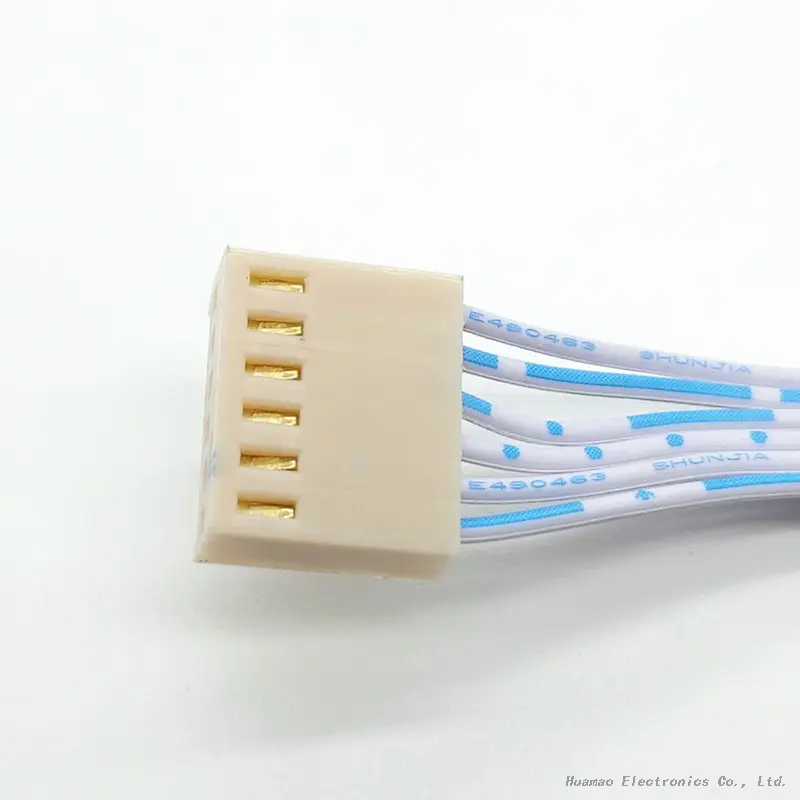

KK2.54 Tin Discrete Cable Assemblies
Part Number: Molex 22011052
KK2.54 Tin Discrete Cable Assemblies offer several cable sizes and a variety of circuit sizes to facilitate both prototyping and global preproduction.
Dual-catilever terminal
Helps ensure reliable electrical contact and performance with low insertion force
Polarizing header backwalls,polarizing ribs on receptacles and polarizing pegs
Prevent accidental mis-mating during assembly
Tape-and-reel packaging with pick-and-place caps available
Enables highly automated termination processing and accurate PCB placement
Optional kinked PC tail
Maintains header positioning during soldering.
KK RPC headers offered in high-temperature nylon and reflow matte-tin plating
Allow for 260℃ wave and reflow solder processing
Friction-lock headers and receptacles
Help ensure secure mating and prevent accidental disengagement
Origin country:China
Length: Customizable
Connector Brand:Molex, JST, JAE, HIROSE etc original or equivalent
Certification:OEM ODM Accept
Wire Gauge:1007/1015/1061/1571 22AWG/24AWG/26AWG/28AWG
Material:PVC + Tinned Copper
Applications:Automotive,interior lighting,stereos,window defrosters,consumer,home appliances,home security devices,data/telecommunications,computers,dental equipment,patient monitoring equipment
Reference information:compliance with RoHS,Halogen free
Voltage:500VAC
Current:4A
Housing:nylon
Contact:brass
Plating:tin
Operating temperature:-40~105℃
